Brand :
SKU : V1202-V1-NHPDTRL1030A
Regular price
$201.49
Sold out
Including GST. Shipping calculated at checkout.
1
/
1
Description

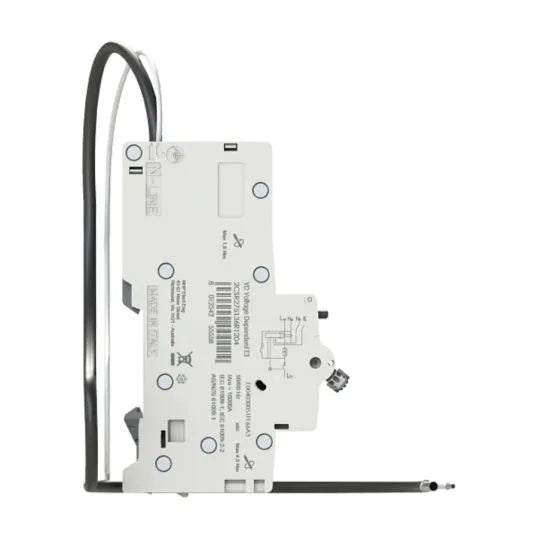

Longbody 1 Pole RCBO suitable for new installation or for retrofit in panelboards. New blue earth leakage trip indicator (ETI), Red/green contact position indicator (CPI) that is independent of the toggle position. Type F in 30 mA for single phase complex loads. Suits standard 3 Pole busbar chassis due to pigtail wire for neutral line side connection. Additional safety feature of earth reference lead ensure operation in case of loss of neutral connections. Fast installation utilising standard 18 mm pin type busbar comb onto the bottom terminals or quick install into Concept distribution panelboards.
Brand: NHP DIN-T
Manufacturer Part Number: DTRL1030A
Barcode: 8012542655350
Product title: NHP DIN-T RCBO Type A 240 VAC 10 Amp 10 kA 1 Pole + N 30 mA IP40 1 Module 17.5 mm | DTRL1030A
Weight: kg
