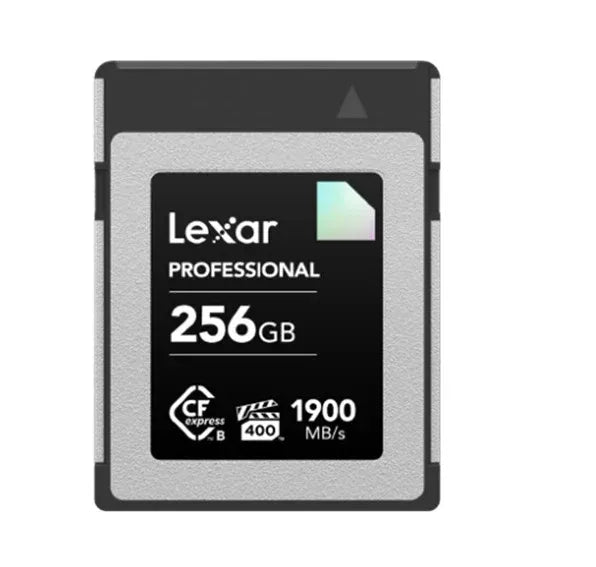

Lexar CFexpress Type B Diamond Series 256GB – CFexpress Type B card Diamond 1900MB/s read, up to 1700MB/s write, VPG400, 8K RAW

Lexar CFexpress Type B Diamond Series 256GB – CFexpress Type B card Diamond 1900MB/s read, up to 1700MB/s write, VPG400, 8K RAW

Specifications

Capacity
128GB / 256GB / 512GB
Form Factor
CFexpress Type B
Interface
PCIe Gen3x2
Performance
up to 1900MB/s read, up to 1700MB/s write
Operating Temperature
-10°C~70°C (14°F~158°F)
Storage Temperature
-40℃ ~ 85℃（-40℉ ~ 185℉）
Dimension (LxWxH)
29.60 mm x 38.50 mm x 3.80 mm / 1.16' x 1.51' x 0.14'
Weight
7.65g / 0.016lbs
Warranty
Lifetime limited warranty
¹Up to 1900MB/s read transfer, write speeds lower. Speeds based on internal testing. Actual speed may vary depending on host device.

²Compatible with firmware-enabled CFexpress™ cameras.

³Limited lifetime warranty is limited to 10 years from purchase in Germany and regions not recognizing lifetime warranty.

*Shock-resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration-resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.

Temperature-proof: Withstands operating temperature range from 14ºF (-10ºC) or 158ºF (70ºC) and non-operating temperatures from -13ºF (-40ºC) or 185ºF (85ºC).

Warning: CFexpress™ Type B cards are only compatible with devices that support the CFexpress™ format. Highest transfer speed achieved only when used with a CFexpress™ Type B reader, indicated by a boxed USB logo on the product. Contact your device manufacturer for details.

Lexar is not liable for any loss of data or images.

Product appearance, performance, software offerings, and packaging may vary depending on ship date and available inventory.

Actual usable memory capacity may vary. 1GB equals 1 billion bytes.

Brand: Lexar

Manufacturer Part Number: LCXEXDM256G-RNENG

Barcode: 843367127627

Warranty: 120 months

Weight: 0.04kg
