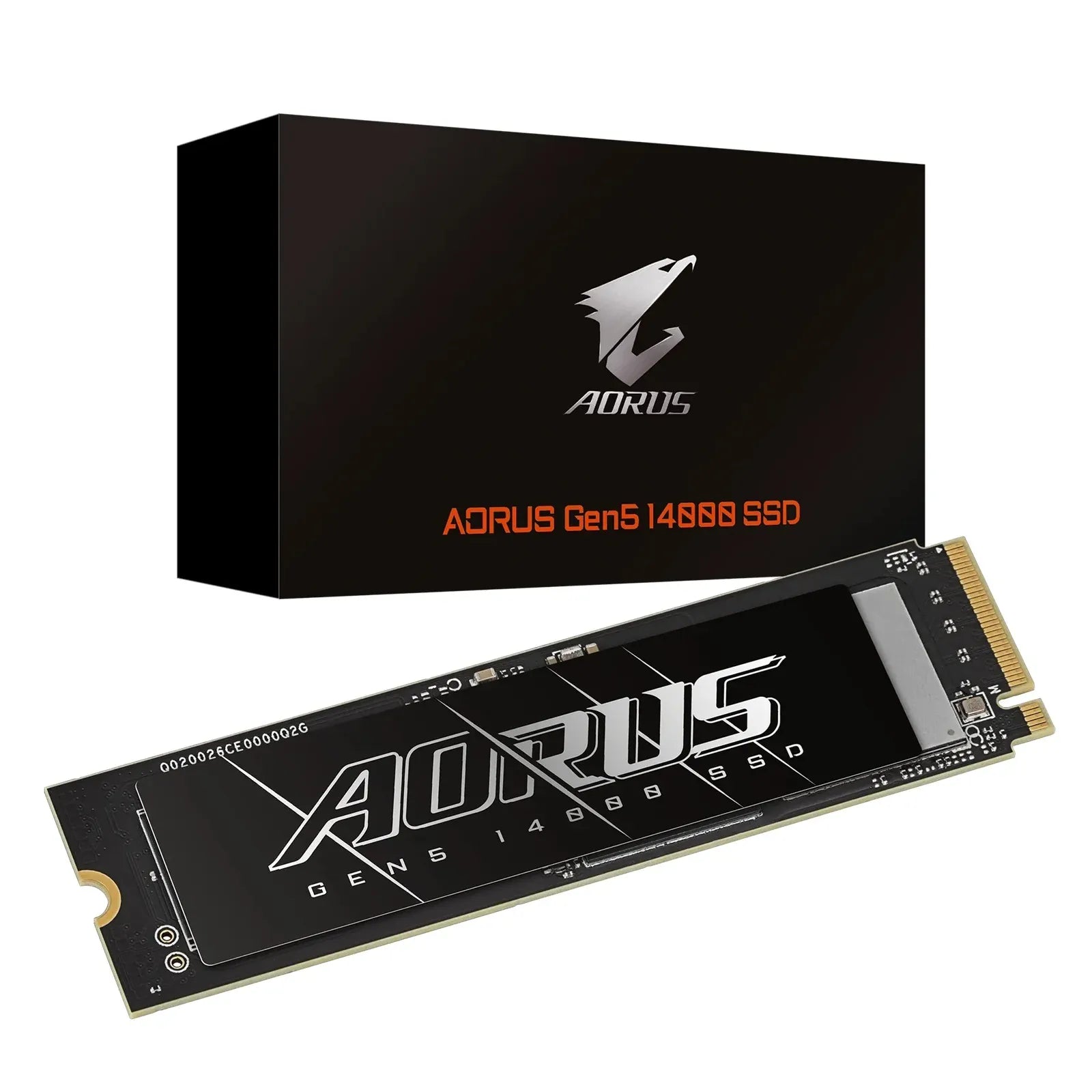

Gigabyte AORUS Gen5 14000 SSD 4TB PCIe5x4 NVMe2.0 M.2 2280 3D TLC LPDDR4 8GB 14100/12600MB/s 80x22x3.5mm MTBF1.6M 11.5W 5yr/3000TBW

Gigabyte AORUS Gen5 14000 SSD 4TB PCIe5x4 NVMe2.0 M.2 2280 3D TLC LPDDR4 8GB 14100/12600MB/s 80x22x3.5mm MTBF1.6M 11.5W 5yr/3000TBW

Interface PCI-Express 5.0x4, NVMe 2.0
Form Factor M.2 2280
Total Capacity 4000GB
NAND 3D TLC NAND Flash
External DDR Cache LPDDR4 8GB
Sequential Read speed Up to 14,100 MB/s
Sequential Write speed Up to 12,600MB/s
Dimension 80 x 22 x 3.5 mm
Mean time between failure (MTBF) 1.6 million hours
Max. Operating Power Read : 11.5W; Write : 11.5W
Power Consumption (Idle, PS3) < 144mW
Power Consumption(PS4, L1.2) < 85mW
Temperature (Operating) 0°C to 70°C
Temperature (Storage) -40°C to 85°C

Warranty
1. Limited 5-years or 3000TBW.
2. Limited warranty based on 5 years or 3000TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the 'Percentage Used' (SMART ID: 05) in SMART page of 'GIGABYTE SSD toolbox' reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note
• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.


* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Brand: Gigabyte

Manufacturer Part Number: SSD AG514K4TB M2 4TB

Barcode: 4719331862596

Warranty: 60 months

Weight: 0.08kg
