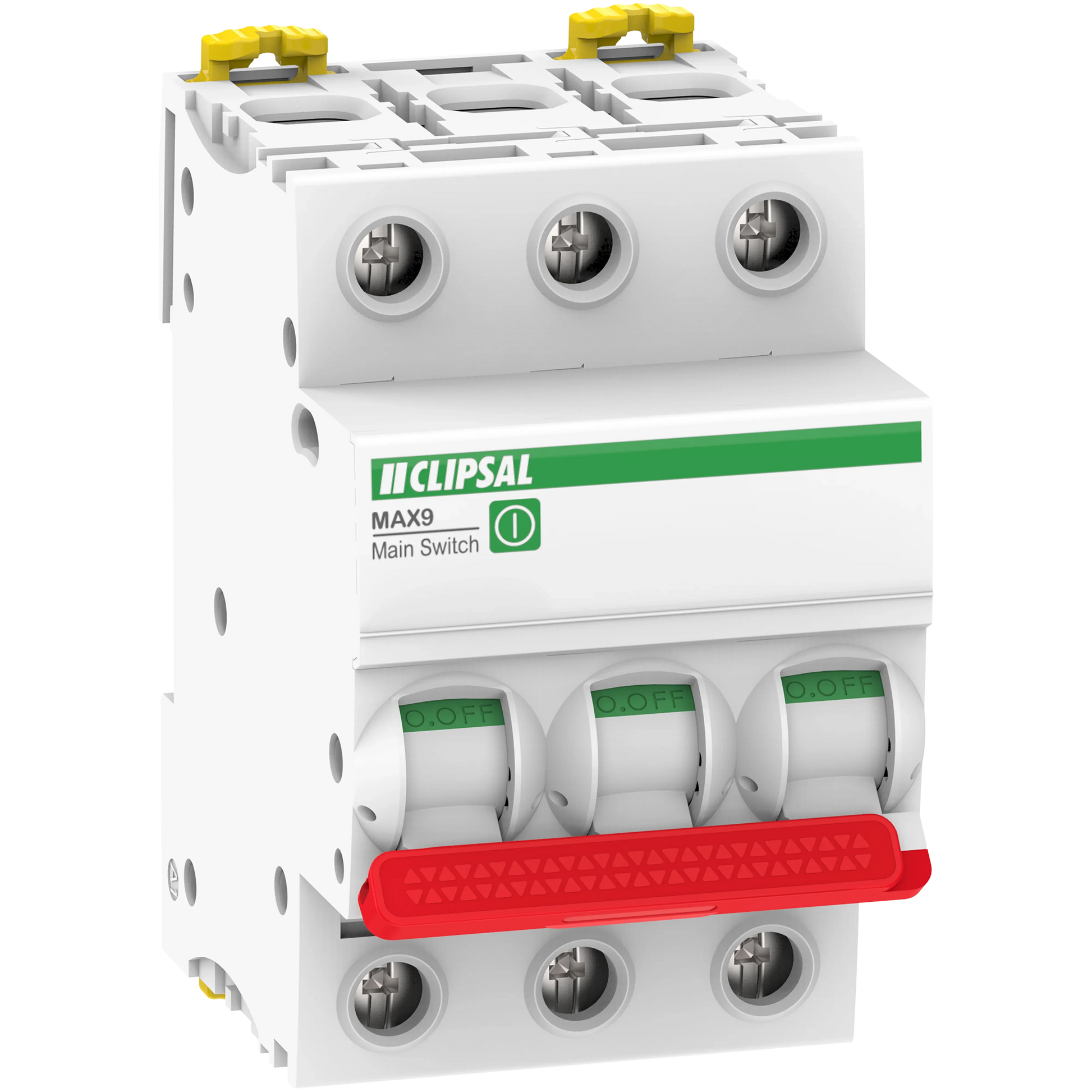

Clipsal MAX9 Isolator Switch 3P, 100A, 415V | MX9MS3100

This MAX9 product is a switch disconnector. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It has a position contact indication suitable for industrial isolation according to IEC 60947-3 standard. It is a 3P switch disconnector with 100A In rated current. The MAX9 is targeted to residential for individual and collective buildings. The Ue rated operational current 415VAC. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 54mm x (H) 85mm x (D) 75mm. According to IEC 60947-3 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25-70 °C. The storage temperature is -40-70 °C.
