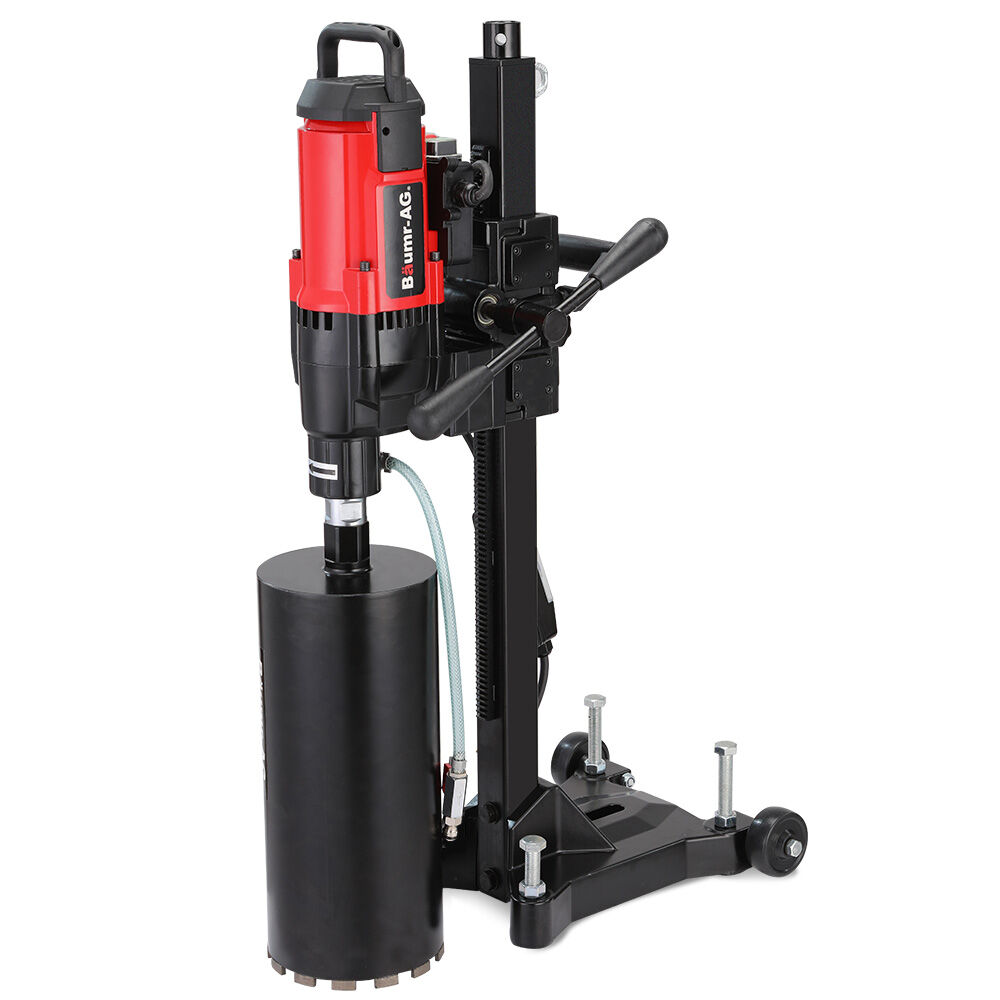

BAUMR-AG 3200W 280mm Wet/Dry Core Drill w/ Wheeled Stand & 127mm Bit Combo, for Concrete Coring Hole Drilling

Take on demanding drilling tasks with this high-performance Baumr-AG Diamond Core Wet/Dry Drilling Machine with Wheeled Stand 127mm Drill Bit Combo. Featuring a powerful 3200W motor and 20-280mm max drilling capacity, youll cut through reinforced concrete, red brick, and granite with ease.

The adjustable wheeled stand provides stability and precision, mounting from 0-90 degrees for versatile positioning. Built to last, its IP54-rated aluminium construction ensures durability in harsh conditions.

Designed for professionals, this rig offers safety-enhancing features like an automatic slip-clutch, inline circuit interrupt switch, and double insulation for operator protection.

Buy Smart. Buy Baumr-AG.

• Heavy-duty 3200W commercial-grade motor for consistent power
• 280mm maximum drilling diameter
• Includes 127mm diamond core drill bit for reinforced concrete, red brick, and granite
• Adjustable stand mounts from 0 to 90 degrees for vertical and horizontal drilling
• Wheeled base for effortless positioning and stability
• Copper motor for high reliability
• Slip-clutch system prevents overload and sudden bit seizing
• 550 RPM single speed for smooth and controlled drilling
• IP54 rating for dust protection and splash resistance
• Aluminium construction for durability in tough environments
• Steel-forged drill shaft ensures long-lasting performance
• 1 ¼ inch UNC standard-sized spindle thread
• The copper water inlet is corrosion proof
• Non-slip handle for a secure grip and fatigue reduction
• Double insulation for motor and operator protection

SPECIFICATIONS

280mm Core Drill

• Input Power: 240V 50Hz AC
• Rated Output Power: 3200W
• Cooling method: Air
• No load speed: 550r/min
• Speeds: 1
• Drilling Diameter Range: 20-280mm
• Spindle Thread: 1-1/4" UNC
• Coring Type: Wet/Dry Coring
• Construction Material:
• Drill: Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor
• Stand: Aluminium Guide Rail, Steel Base
• IP Rating: IP54

Diamond Core Drill Bit - 127mm

• Cutting Diameter: 127mm
• Length: 10mm
• Type: Hole Cutter
• Featured Refinements: Hole Saw
• Shaft Material: Commercial Grade Steel
• Cutting Teeth Material: Diamond/Steel Blend
• Thread SIze: 1 1/4 UNC
• Cutting Teeth Length: 10mm
• Threaded Connection: 1 1/4 UNC

IN THE BOX

• 1 x Baumr-AG Core Drill
• 1 x Drill Rig (Assembly Required)
• 1 x Baumr-AG Diamond Core Drill Bit
• Note: User Manual is accessible online

SIZE WEIGHT

• 280mm Core Drill with Stand
• Product Dimensions (W x D x H): 260 x 520 x 930mm
• Product Weight: 28kg
• Carton Dimensions (W x L x H): 32 x 100 x 44cm
• Carton Weight: 32kg
• Diamond Core Drill Bit - 127mm
• Product Dimensions: 127mm x L455mm
• Product Weight: 3.5kg
• Carton Dimensions (W x L x H): 30 x 49 x 29cm
• Carton Weight: 15.45kg
