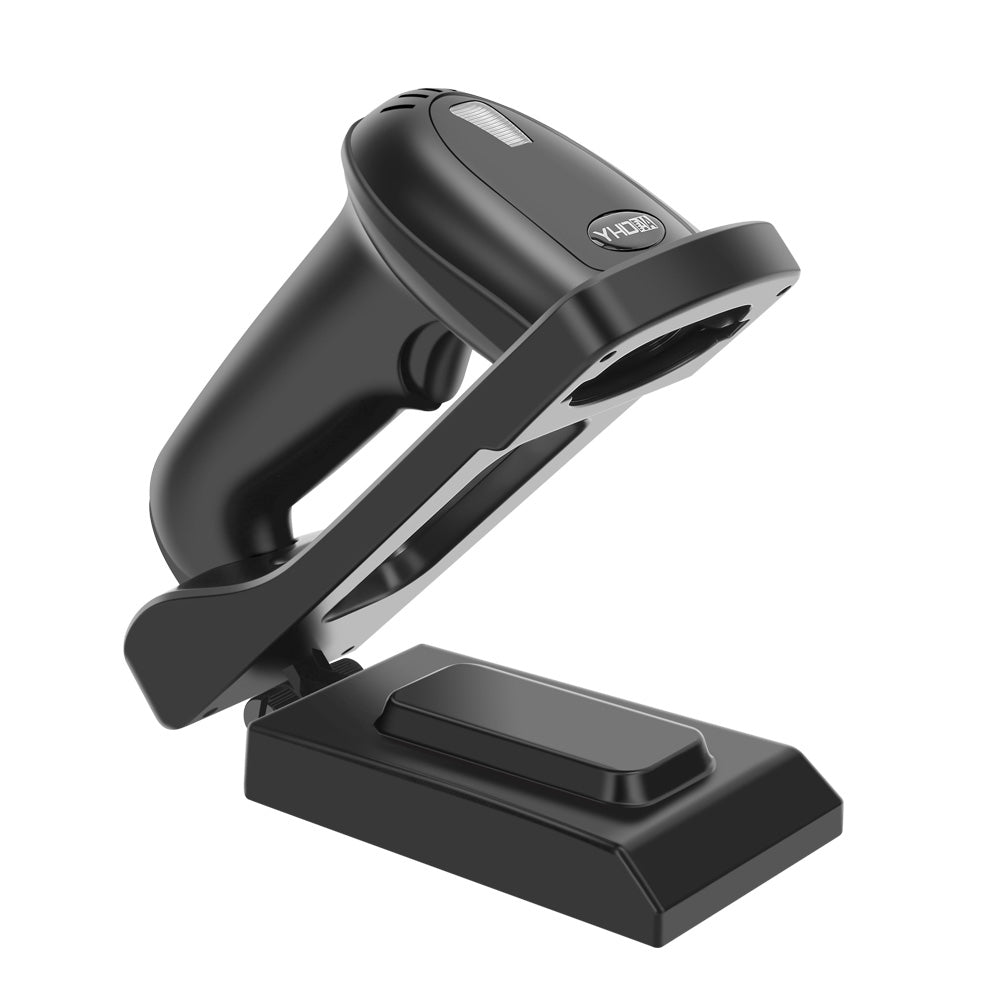

YHDAA YHD-5800DB 2D Wireless Bluetooth Barcode / QR Code Scanner with Stand (Black)

Product Specification: YHD-5800DB  2D Wireless Bluetooth Barcode Scanner

Scanner parameters:

Transmission mode: Bluetooth/2.4G/Wired

Storage: 100,000 barcodes

Distance: 50m/100m/1.5m

Sensor: 640 × 480 CMOS

CPU: ARM 32-bit Cortex

Battery: 3.7V-2600mAh

Indication: Buzzer & LED

Light aimer:617nm LED

Resolution: 4mil

Anti-inference: 0-100000Lux Max

Decoding speed: 500scans/sec

Illumination:6500K LEDs

Printing Contract: ≥25%

Interface: USB, USB-COM

Button life: 8000,000 times

Material: ABS+PC

Trigger Mode: Handheld,Continuous,Auto-Induction

Depth

Of

Field

13mil-EAN13

50-250mm

4mil-code39

60-100mm

20mil-QR

40-300mm

10mil-PDF417

40-280mm

Decode Capability:

1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5,

Coda bar, MSI Plessey, RSS, etc.

2D:  QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.

Scanning angle: Angle of rotation360°, inclination± 65°, declination ± 60°

Working current: 3.3Vx200mA

Standby current: 18uA-5mA

Working time: 3 to 10 days

Charging power: 5V-400mA

Certificate: CE, FCC, RoHS, IP54

Drop  test: 2m
