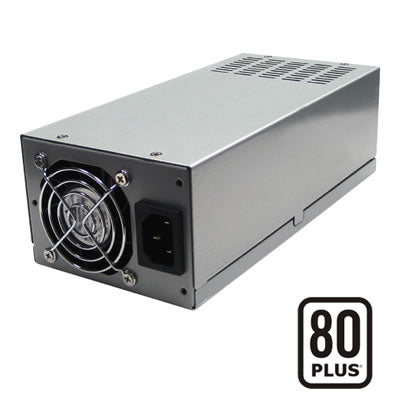

SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)
Brand : Does not apply

SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)

SKU: V28-PSUSEA600H2U80P
Price
Save $82.96
/

  • Ships Next Business Day
  • 12 Months Warranty
  • 30 Days Returns*
  • Local Support
  • Secure payments
  • Carbon neutral
  • In stock, ready to ship
  • Backordered, shipping soon
GST Included. Shipping calculated at checkout.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Product Description

The SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U) is designed for high efficiency and reliability in industrial applications, featuring compliance with Intel EPS12V specifications and advanced safety protections, including short circuit, over voltage, and over power safeguards. With a compact design measuring 270 x 100 x 70mm, this power supply unit boasts a smart and silent fan control system, ensuring low noise and ripple while maintaining optimal performance. Its customizable modular cables and robust ball bearing fan enhance ease of use and longevity, making it a reliable choice for your computing needs. Enjoy peace of mind with this PSU, backed by safety certifications like CUL, TUV, and CE, ensuring top-notch reliability

Features:
- Specification compliance: Intel EPS12V
- Forward converter circuit
- High efficiency and reliability for industrial level
- Easy swap connector design
- High reliability ball bearing fan
- Low ripple & noise
- Smart & Silent Fan Control (S2FC)
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards

Dimension: L270 x W100 x H70mm (10.6 x 3.9 x 2.7)
Fan type: 60 x 60mm
Connectors:Customized modular cables

Electrical Specifications:
- Input frequency: 50 / 60 Hz
- Inrush current, cold start: 100A max.
- Hold up time, full load: 16ms. typical
- Efficiency, 220-240VAC, full load: 83% typical
- Efficiency, 100-120VAC, full load: 80% typical
- Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
- Dielectric withstand, input to output: 1800VAC, 1sec.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load: >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC
EMC: CE, FCC

Package contents:

1x SeaSonic 600W Active PFC F0 2U PSU (SS-600H2U)
