Details

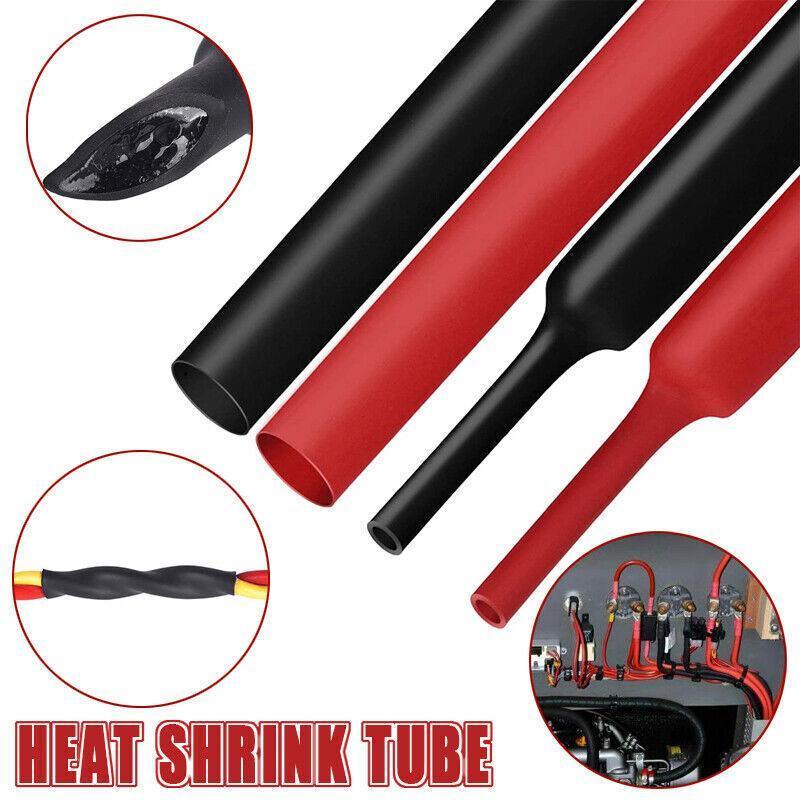

3:1 Heat Shrink Ratio with glue liner insert double Wall (available diameter size)
Diameter:25.4mm After Shrinking:8.5mm
Diameter:19.1mm After Shrinking:6.4mm
Diameter:12.7mm After Shrinking:4.2mm
Diameter:9.5mm After Shrinking:3.2mm
Diameter:6.4mm After Shrinking:2.2mm
Material:Polyolefin
Minimum Shrinkage Temp:+70°C
Full Shrinkage Temp:+110°C maximum
Operating Temperature:-55°C to +125°C
Tensile strength:10.4 Mpa
Dielectric strength:15 kV/mm
Manufacture specification:ISO9001
Flammability:Flame Retardant
Approvals:UL Approved
Supplied format (round or flat):Product is supplied flat
Cutting method:Scissors or sharp knife
Heat shrinkable tube has excellent un-flammability, flexibility, and insulation. The shrinking temperature is very low and it can shrink very quickly. It is suitable for various electric insulation and bonding of cables and connectors and widely applied for connecting or end-handling, electric wire, insulating and harness of electric wire, corrosion-proof of metallic rods or tubes, and antenna.
Double wall heat shrink tube is thick layer of quality insulation, it provides excellent property of both insulation and sealing, it is best used when corrosion protection,resist to destroy, abrasion resistant and long lasting sealing are required.
NOTE
1. As different computers display colors differently, the color of the actual item may vary slightly from the above images.
2. Please allow 1-3 CM differs due to manual measurement.
