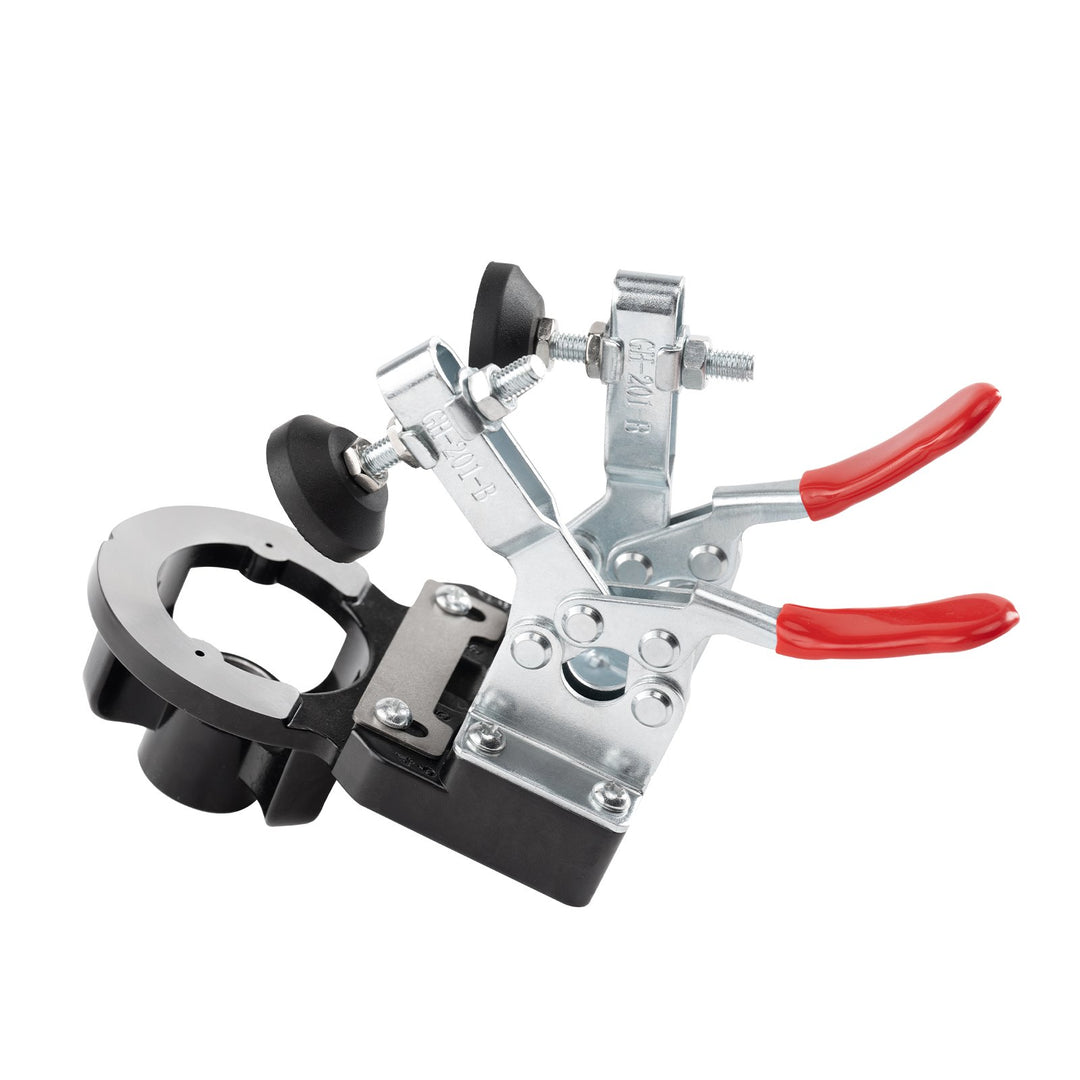

VEVOR 35 mm Concealed Door Hinge Jig, Aluminum Alloy Cabinet Hinge Jig, Accurate Locking Dual Clamp Fixation Hinge Drill Jig with Accessories, Woodworking Tool for Doors Cabinets Hinges Mounting

Name: VEVOR 35 mm Concealed Door Hinge Jig, Aluminum Alloy Cabinet Hinge Jig, Accurate Locking Dual Clamp Fixation Hinge Drill Jig with Accessories, Woodworking Tool for Doors Cabinets Hinges Mounting
Brand: Shopperslane
SKU: V952-JLDWKKQTS35MMM9D7V0
Price: 41.99 AUD
Availability: InStock

SKU: V952-JLDWKKQTS35MMM9D7V0

Price

Save $-41.99

/

Ships Next Business Day

12 Months Warranty

30 Days Returns*

Local Support

Secure payments

Carbon neutral

In stock, ready to ship
Backordered, shipping soon

Product Description

Introducing our versatile dual-clamp hinge jig, expertly designed for precision drilling and secure workpiece alignment. Crafted from durable aluminum alloy and carbon steel, this user-friendly jig minimizes slippage and ensures drilling accuracy, making it perfect for installing and repairing cabinet and wardrobe hinges. With adjustable edge spacing and depth settings, it accommodates various hinge sizes and drill bits, allowing you to complete projects quickly and efficiently without professional help. Ideal for both DIY enthusiasts and professionals, this reliable tool is a must-have for any workshop.

Product Features

Dual-Clamp Fixation

This adjustable dual-clamp hinge jig ensures precise alignment, unlike single-clamp versions, providing superior stability and preventing slippage. Its built-in dual-clamp design quickly and securely holds workpieces in place, preventing displacement of hole positions and ensuring drilling accuracy and stability. It also minimizes drilling deviations caused by workpiece movement, reducing errors and maintaining drilling precision.

Sturdy and Durable

The door hinge jig frame is made of high-strength aluminum alloy, while the drilling tools are made of carbon steel and YG8 hard alloy. The overall structure is stable, ensuring durability and adaptability to different environments, including harsh weather conditions, high temperatures, and moisture. It maintains its strength and stability, with minimal risk of deformation or damage even with prolonged use.

Precision Drilling

This tabletop concealed hinge jig achieves quick and precise hole alignment through the adjustable positioning plate for edge spacing and the top-bearing depth adjustment. You can easily adjust the edge spacing by loosening the screws, with a range of 0.12-0.28 inches (3-7 mm), and the drilling depth ranges from 0.39-0.59 inches (10-15 mm). The higher the top-bearing height, the more precise the holes it drills.

User-Friendly

Our hinge jig kit is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, replace the top nut with a butterfly nut; Step 2, install the tools, top bearing, and limit ring in sequence; Step 3, adjust the hole spacing and clamp the workpiece securely; Step 4, use an electric drill to fix, drill the holes and side holes, and install the hinge. You can complete the installation in just a few minutes.

Wide Application

This cabinet hinge jig is designed for 1.38'' hinges and can be used with various drill bits to meet different usage scenarios. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).
