Telescopic Sliding Gate Pulley System

Heavy-Duty Telescopic Gate System

The heavy-duty telescopic gate system from Randy Travis Machinery is engineered for seamless operation in tight spaces, offering a primary and trailing gate configuration that minimises the space required for the gate to open.

Key Features:

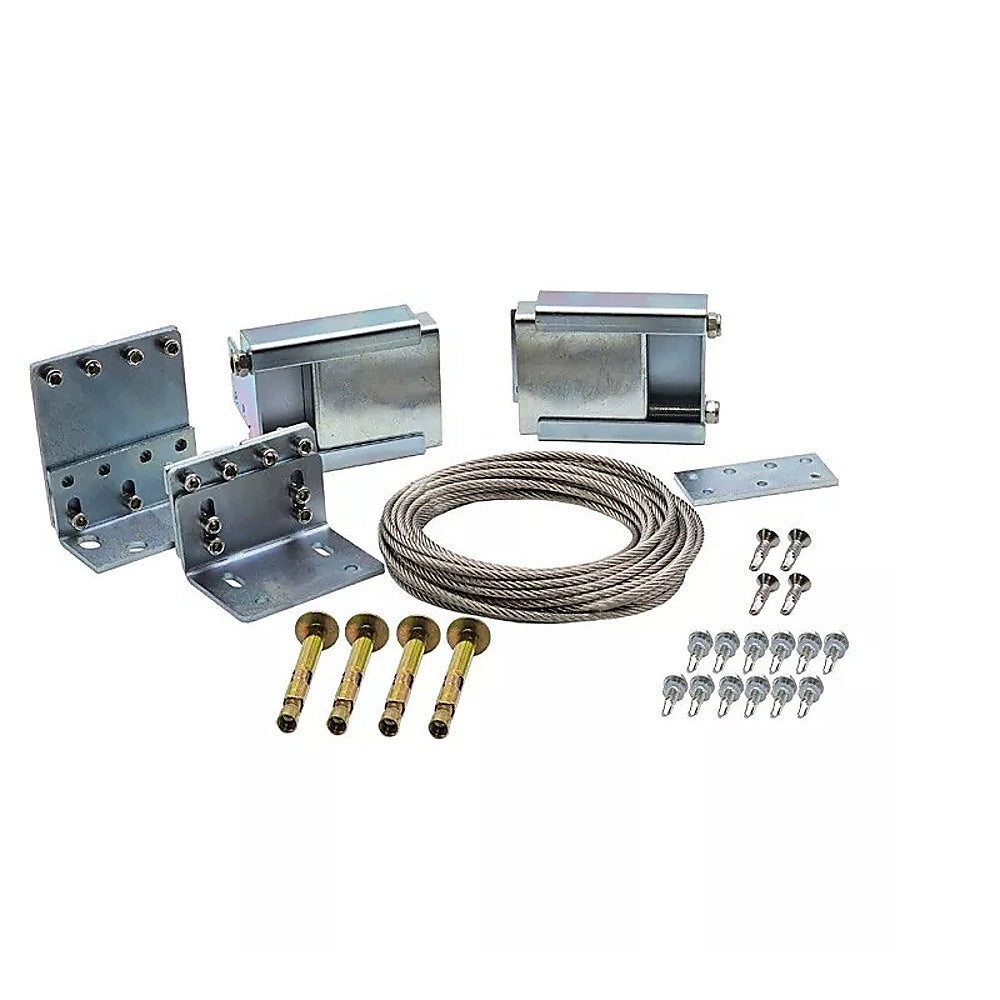

• Primary Secondary Gate Integration:

  • The kit establishes a connection between the primary gate (rear gate) and the secondary gate (front gate), ensuring synchronized movement.
  • The primary gate features adjustable pulley systems with sealed bearings for smooth operation, while the secondary gate includes a dedicated bracket (supplied) that connects to the primary gate's stainless steel pulley wire.

• Dual Operation Modes:

  • In manual mode, moving either gate will prompt the other to follow.
  • In automated setups, a sliding gate motor initiates movement via the connected primary gate.

• Universal Compatibility:

  • Compatible with all sliding gate wheels, supported by both low and high base plate systems.
  • Supports IRM (Internal Recess Mount) and EFM (External Flat Mount) wheels.
  • Works with various guiding systems, including roller and bracket arrangements or nylon block and angle arrangements.

• Adjustable Pulley System:

  • Offers up to 25mm (1 inch) of adjustment at either end of the primary gate for precise tensioning, ensuring smooth and reliable operation.

• High Performance:

  • Capable of handling gates up to 4500mm (4.5 meters) in length and a maximum weight of 250kg per gate.
  • Supports a tail section of 350mm, allowing for a maximum opening width of 8300mm (8.3 meters).

This innovative telescopic gate system is the perfect solution for properties requiring compact, efficient, and reliable sliding gate operation.
