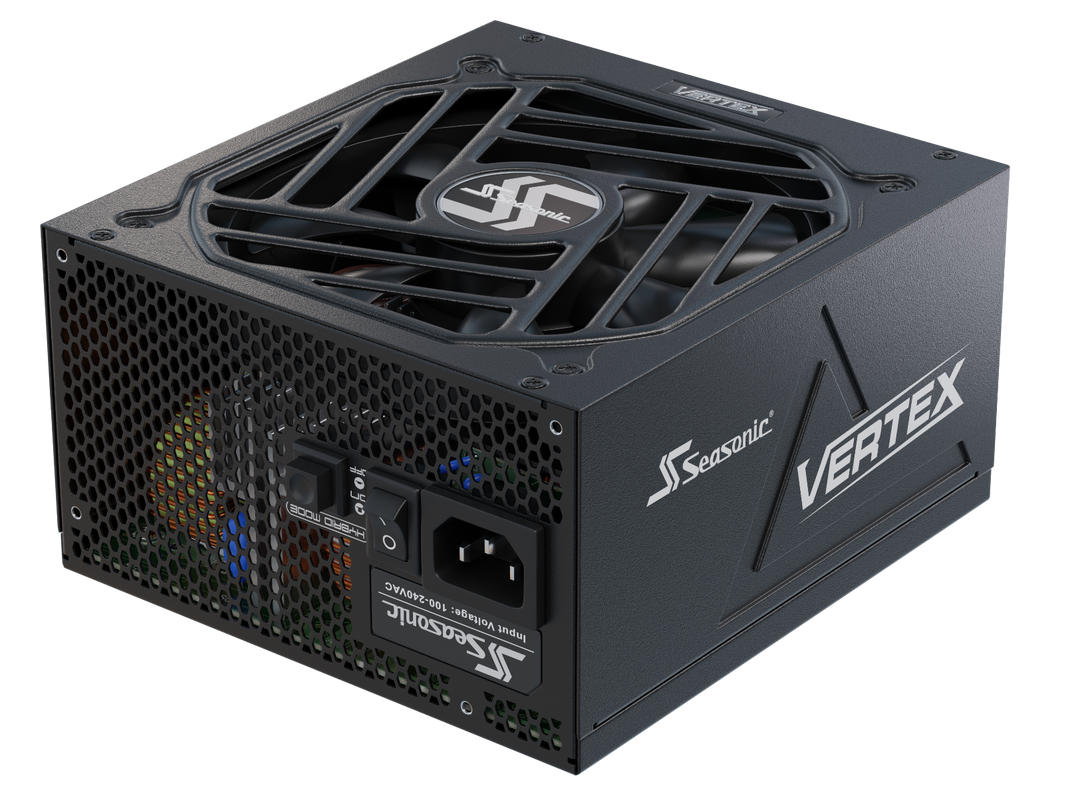

Seasonic VERTEX 750W (PX-750) Platinum Fully Modular PSU ATX 3.0
Brand :

Seasonic VERTEX 750W (PX-750) Platinum Fully Modular PSU ATX 3.0

SKU: V28-PSUSEAVERPX750
Price
Save $102.96
/

  • Ships Next Business Day
  • 12 Months Warranty
  • 30 Days Returns*
  • Local Support
  • Secure payments
  • Carbon neutral
  • In stock, ready to ship
  • Backordered, shipping soon
GST Included. Shipping calculated at checkout.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Product Description

Experience top-tier performance with our 750W ATX 3.0 power supply, featuring 80 PLUS® Platinum certification for exceptional energy efficiency. This fully modular unit includes a 16-Pin PCIe Gen 5 cable and is equipped with a high-quality 135mm fluid dynamic bearing fan, ensuring silent operation and reliable cooling. With tight voltage regulation and gold-plated high current terminals, it supports stable power delivery for your motherboard, CPU, and PCIe components. Plus, enjoy peace of mind with a robust 10-year warranty and advanced safety features for a worry-free setup. Upgrade your system with this reliable power supply for optimal performance and longevity.

FEATURE SUMMARY
  • Super-High Efficiency, 80 PLUS® Platinum Certified
  • Fully Modular
  • ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
  • Top-Quality 135 mm Fluid Dynamic Bearing Fan
  • Premium Hybrid Fan Control
  • Tight Voltage Regulation (12V, 5V and 3.3V) [± 3%]
  • Gold Plated High Current Terminal (MB, CPU and PCIe)


    • Technical Specifications
    80PLUS® Platinum
    Cybenetics Efficiency Level TBA
    Cybenetics Noise Level TBA
    Form Factor Intel ATX 12V
    Dimensions 160 mm (L) x 150 mm (W) x 86 mm (H)
    Fan Information Fan Size 135 mm
    Fan Control Premium Hybrid Fan Control
    Fan Bearing Fluid Dynamic Bearing
    Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
    Cable Information Modularity Fully Modular
    Cable type Flat black cables
    Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan 150,000 hours
    AC Input Full Range
    Protection OPP, OVP, UVP, OCP, OTP, SCP
    Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
    Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty 10 Years

    Power Output
    AC Input Voltage: 100 V - 240 V
    Current: 10 - 5 A
    Frequency: 50 Hz - 60 Hz
    DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
    Maximum Power 20 A 20 A 62 A 0.3 A 3 A
    125 W 744 W 3.6 W 15 W
    Total Continuous Power 750 W
