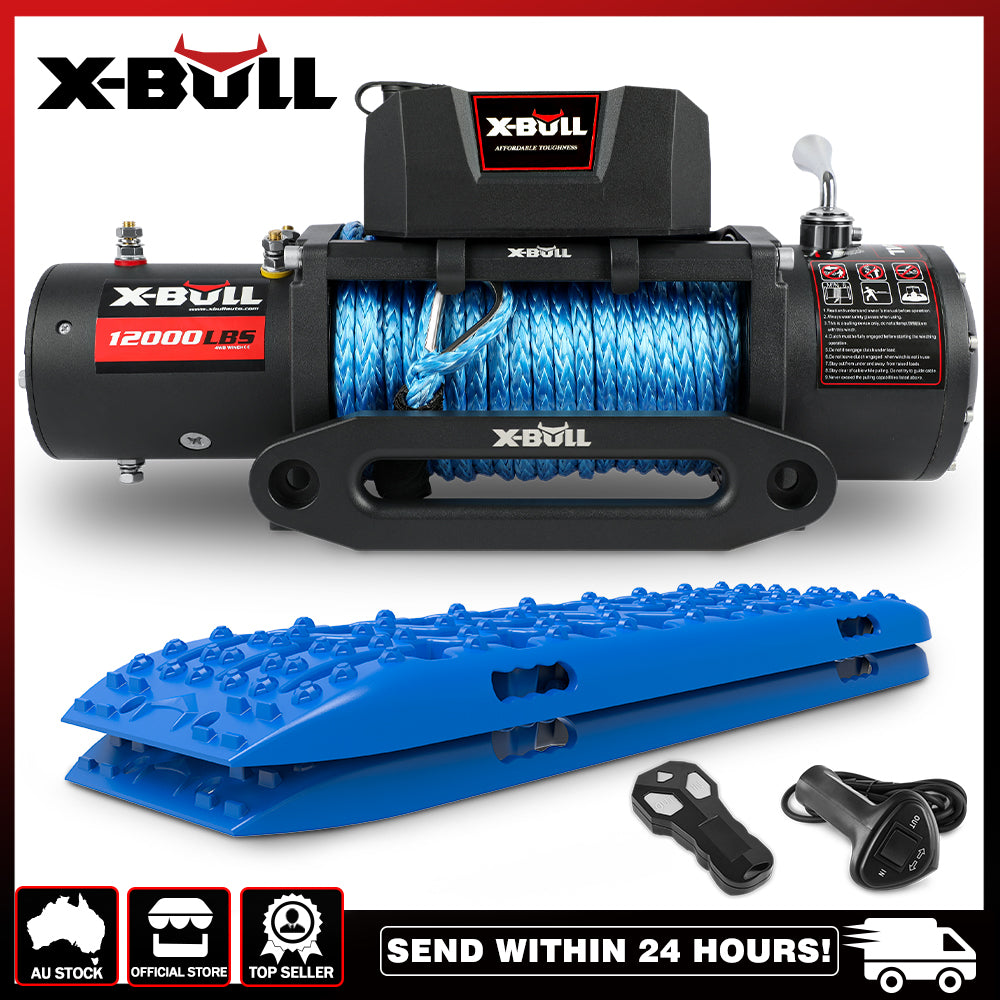

X-BULL 12V Electric Winch 12000LBS 4WD synthetic rope/2PCS Recovery Tracks Sand Mud Track Gen3.0 Blue

FEATURES:

1.MOTOR
Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

2.MULTI POSITION CONTROL BOX
Integrated control box,works underwater, contact material agcdo ensures high current conduction provides protection on current,votage and temperature.

3.THREE-STAGE PLANETARY
The real 3-Stage Planetary enables differential, deceleration(growth), reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration(growth).

4.All-STEEL SHELL
The all-steel shell can protect the winch well, and the black frosted spray paint will not rust.
Diamond-shaped design is more conductive to the heat dissipation of the gearbox to ensure the long operation of the winch.

When great becomes legend?

The SYNTHETIC series by X-BULL Winch brings innovation and a radical new design to the uitra successful 12000lb platform.Decades of winch design experience have been utillsed to produce one of the finest winches on the market.

Under the skin we've kept the same features known and loved by our customers;super smooth three stage planetary gears,2-ways free spool clutch,new style wireless plus wired big-grip remote and a host of accessories.

SPECIFICATION:

Brand:X-BULL

Rated line pull: 12000lbs(5454KG)single line

Motor:6.0HP output series wound

Gear redustion ratio:265:1

Cable length:9.5MM*26M

Control:wire/wireless control

Brake: Action automatic in-the-drum

Fairlead: aluminium hawse fairlead

Gear train:3 stage planetary

Drum size:2.5"*9.6"(63.5mm*224mm)

Voltage:12V

Clutch:sliding ring gear

Weight:26kg

Dimensions:530mm*160mm*218mm

Colour:Blue

IN THE BOX:

1*12000LB winch

1*A Pair of recovery tracks Gen3.0

1*aluminium hawsefairlead

1*clevis hook with safety clip and matket tab

1*big grip hand held remote control

1*new style wireless remote control

1*winch lanyards

1*control box

1*26mtr multi stranded cable fitted to drum

1*set of stainless fitting bolts

1*user manual
