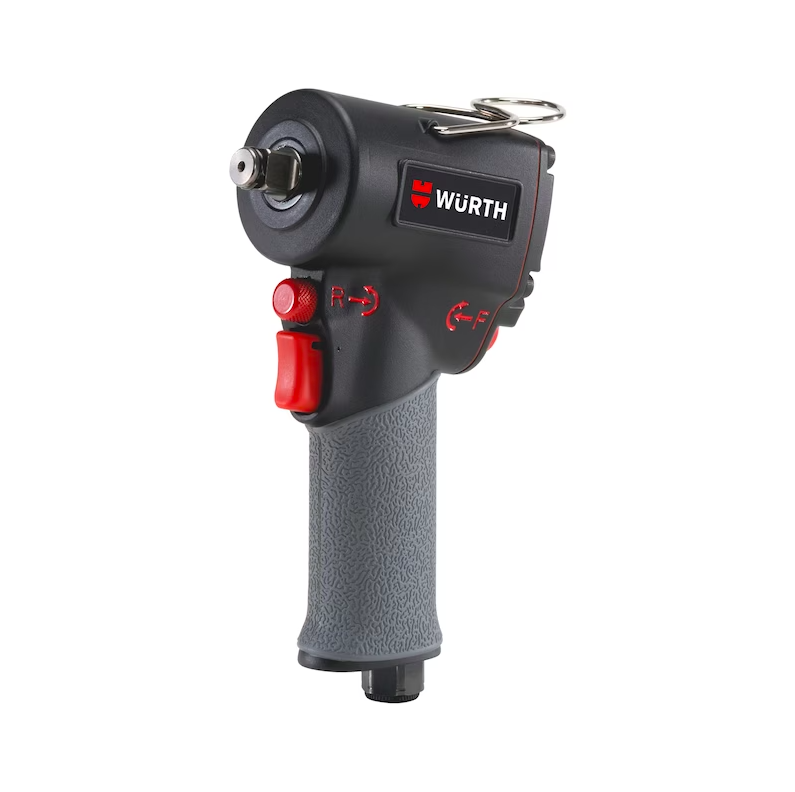

Wurth Pneumatic Impact Screwdriver Compact Gun type Power Tool

SKU : V563-57143020

Regular price $589.99
Ships in 24 hours
30 Days Easy Returns
12 Months Warranty
Secure Payments

Wurth Pneumatic Impact Screwdriver Compact Gun type Power Tool

Description

Very powerful yet compact pneumatic impact screwdriver with outstanding power-to-weight ratio. Maximum recommended screw size: M16.

Long service life and optimal balance distribution
-Rugged, well-balanced unit in aluminium housing.

Very handy and user-friendly

  • Rubberised handle prevents unpleasant cooling

  • User-friendly clockwise/anti-clockwise changeover and adjustable button


Compact and extremely powerful jumbo hammer mechanism

- High power development with small size and low weight, up to 1,100 Nm breakaway torque.

Optimum and user-friendly adjustment to any application, at any time

-Three-stage power setting for clockwise rotation, with sensitive trigger


Notice

  • Impact screwdrivers are not torque screwdrivers. Connections requiring a specific torque must be checked by means of a torque measuring device after tightening with the impact screwdriver.

  • When the impact screwdriver is used regularly, a little oil should be added daily through the compressed air supply.

  • Plug-in nipple not included in the scope of delivery

Application area

Ideal where space is limited, e.g. gearbox, engine compartment, brakes

V563-57143020

Type description

DSS 1/2 inch Compact

Tool holding device

1/2-inch external square

Max. working torque

678 Nm

Max. releasing torque

1100 Nm

Sound-pressure level

102 dB

Vibration

7.5 m/s²

Operating pressure

6.3 bar

Weight of machine

1.34 kg

Min. hose inner diameter

9 mm

Air consumption

122 l/min

Connection thread

1/4 inch

Length x width x height

109 x 57 x 188 mm
