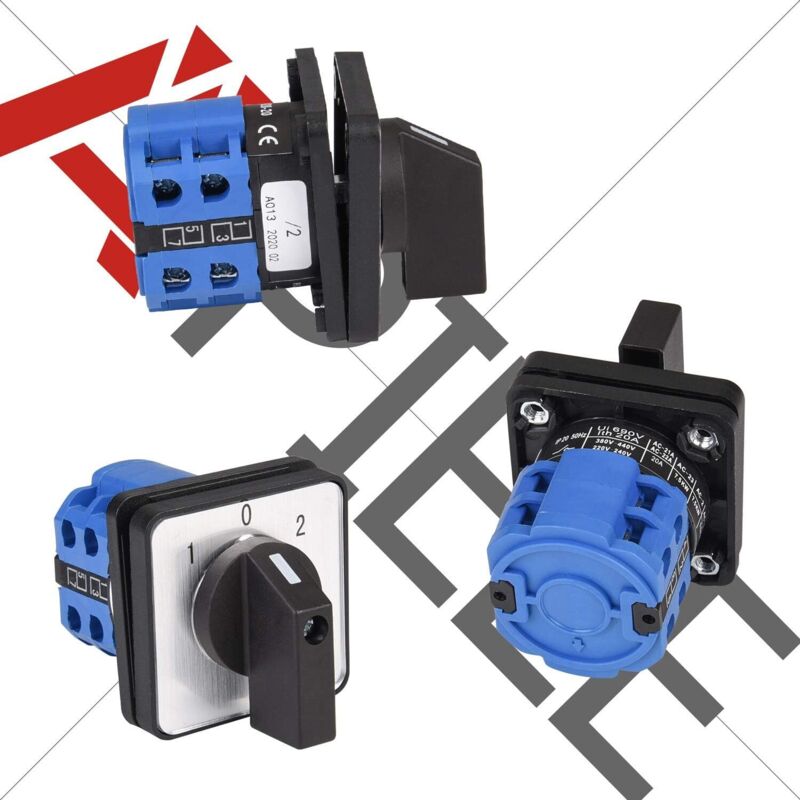

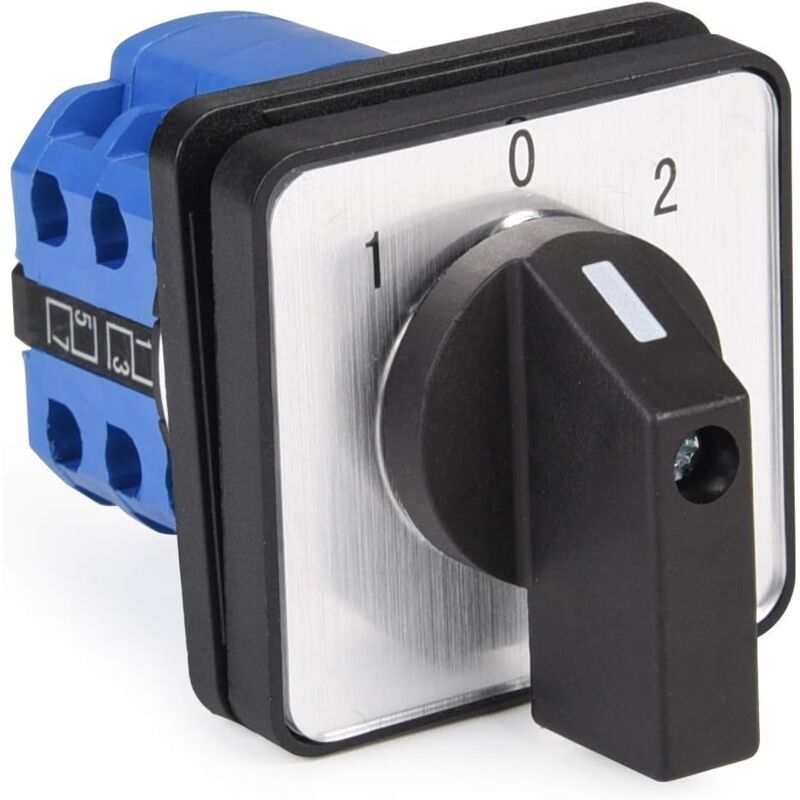

Universal Rotary Cam 20A 3 Positions 8 Terminals 690V Cam Switch
SKU:
V1188-CE-MO00256
$31.99
Regular price
$35.24
Save $3.25
Sale
12 MONTHS AUSSIE WARRANTY
DELIVERY IN AUSTRALIA ONLY
SHIPS NEXT BUSINESS DAY WITH TRACKING
AVAILABLE ONLINE ONLY
In stock
Secure checkout
Shipping Estimates Estimated delivery 3–7 business days when shipped from Melbourne.
Loading
Calculating shipping…
Product details

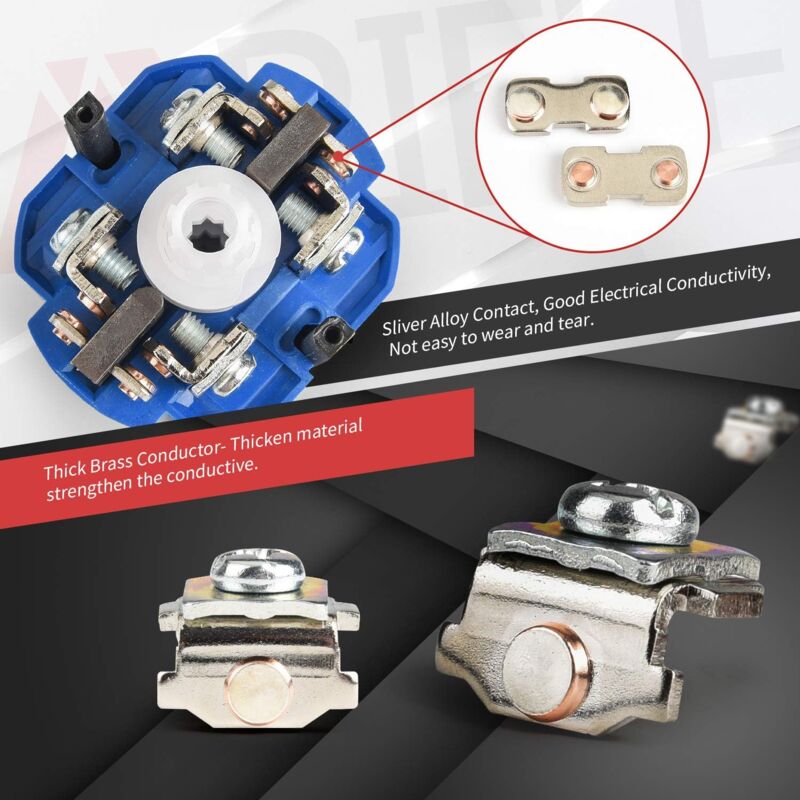

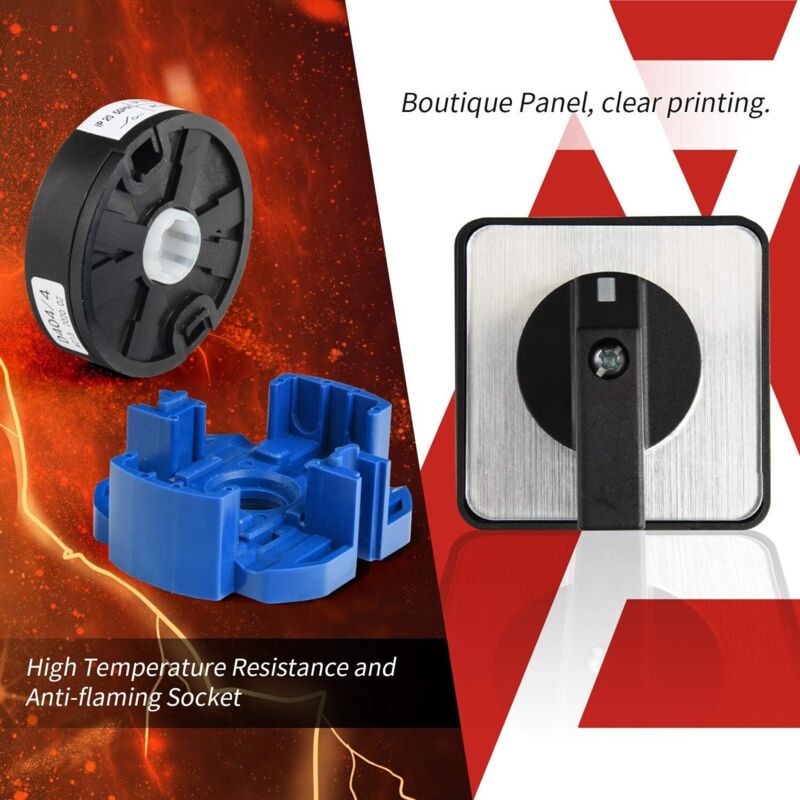

- Product Name: 3-position load selector switch Ui: 690V, Ith: 20A, 8 terminals. Model: LW28-20/2, 3 positions (1-0-2), 2 phases, 8 terminals Locking switch panel size: 48 x 48 mm, Installation size: 36 x 36 mm Material: Flame retardant polycarbonate, high temperature resistance, high quality copper parts with silver alloy tip. 3-position universal rotary switch (20A, 8 terminals). 1. Suitable for thickness between 1 mm and 5 mm of the mounting plate. 2. The ideal choice for electrical wiring in circuit breakers, speed switches and asynchronous motors because their starting and reversing can also lead to the conversion of the control circuit. 3. Widely used as circuit control switch, motor control switch and main control switch, signal transmission switch or switch for electric welding machines and other devices. Package Contents: 1 x Power Switch 4 x Mounting Screws.
Returns, Refunds and Replacements
Products that are received faulty, damaged, or not as described are eligible for a return, refund, or replacement in accordance with the Australian Consumer Law (ACL). We are committed to ensuring all products meet the standards of quality and reliability expected by our customers. However, please note that we do not accept returns or provide refunds for change of mind. We encourage you to carefully consider your purchase to ensure it meets your needs and expectations.
Delivery Timeframe
Please note that we cannot guarantee the exact date of arrival, and the delivery timeframes (excluding weekends and public holidays) are as follows:
- For customers in Victoria, approximately 7-10 working days;
- For customers in NSW, SA, ACT, and QLD, approximately 9-12 working days;
- For customers in WA, NT, and TAS, approximately 9-12 working days.
Loading
Loading
Description
- Product Name: 3-position load selector switch Ui: 690V, Ith: 20A, 8 terminals. Model: LW28-20/2, 3 positions (1-0-2), 2 phases, 8 terminals Locking switch panel size: 48 x 48 mm, Installation size: 36 x 36 mm Material: Flame retardant polycarbonate, high temperature resistance, high quality copper parts with silver alloy tip. 3-position universal rotary switch (20A, 8 terminals). 1. Suitable for thickness between 1 mm and 5 mm of the mounting plate. 2. The ideal choice for electrical wiring in circuit breakers, speed switches and asynchronous motors because their starting and reversing can also lead to the conversion of the control circuit. 3. Widely used as circuit control switch, motor control switch and main control switch, signal transmission switch or switch for electric welding machines and other devices. Package Contents: 1 x Power Switch 4 x Mounting Screws.
