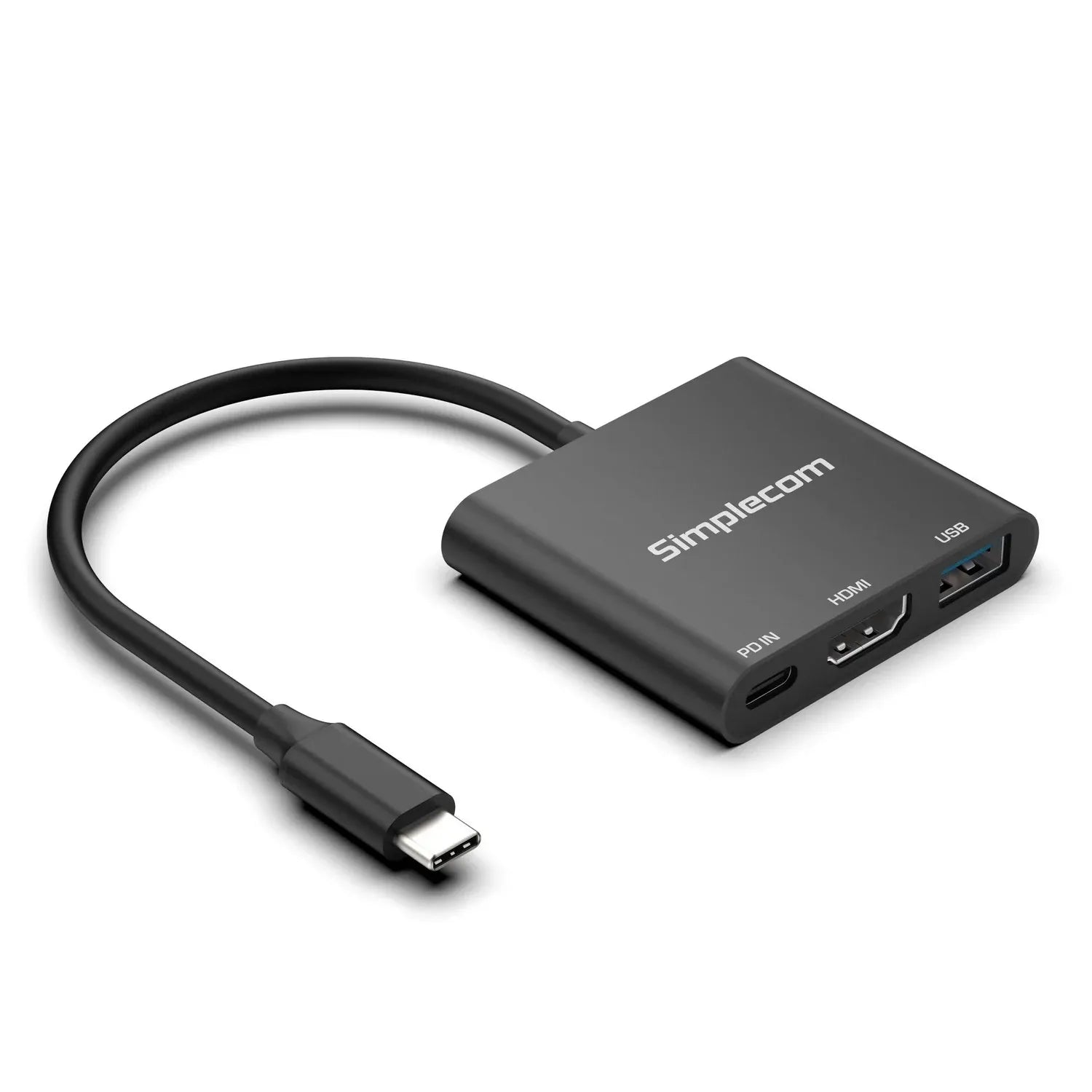

Simplecom DA320 USB-C 3-In-1 Adapter USB 3.2 Gen 1 5Gbps PD HDMI 2.0 4K@60Hz

Simplecom DA320 USB-C 3-In-1 Adapter USB 3.2 Gen 1 5Gbps PD HDMI 2.0 4K@60Hz

Quick Overview
- 3-in-1 USB-C multiport adapter with HDMI, USB-A and PD
- Connects monitor, USB and PD charger through a single USB-C port
- Up to 4K@60Hz UHD resolution on HDMI 2.0 connection
- HDMI output supports mirror or extended display mode
- SuperSpeed USB-A port supports data transfer rate up to 5Gbps
- Supports Power Delivery up to 100W charging via the USB-C PD port
- Durable and sleek aluminum alloy housing
- Portable and lightweight, easy to carry along when travelling
- Plug and play, no driver or software required

Specification
- Material: Aluminum Case
- Interface: USB-C Male
- Connection Ports: HDMI, USB-A, USB-C PD
- HDMI Version: HDMI 2.0
- HDMI Resolution: up to 4K@60Hz (3840x2160)
- PD Charging: 1x USB-C Female (for charging only), up to 100W
- USB Port: 1x USB-A (USB 3.2 Gen 1 5Gbps)
- Operation Temperature: 0 - 50°C
- Cable Length: 10cm
- Dimension: 5.8cm x 5.1cm x 1.2cm

System Requirements
- Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
- Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz
- Operating System: Windows 10 or above, macOS 10.12 or above, ChromeOS, Android

Important Note
- Please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
- 4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
- The USB-C female port is for PD charging only, not for data transfer

Brand: Simplecom

Manufacturer Part Number: DA320

Barcode: 9350414003656

Warranty: 12 months

Weight: 0.06kg
