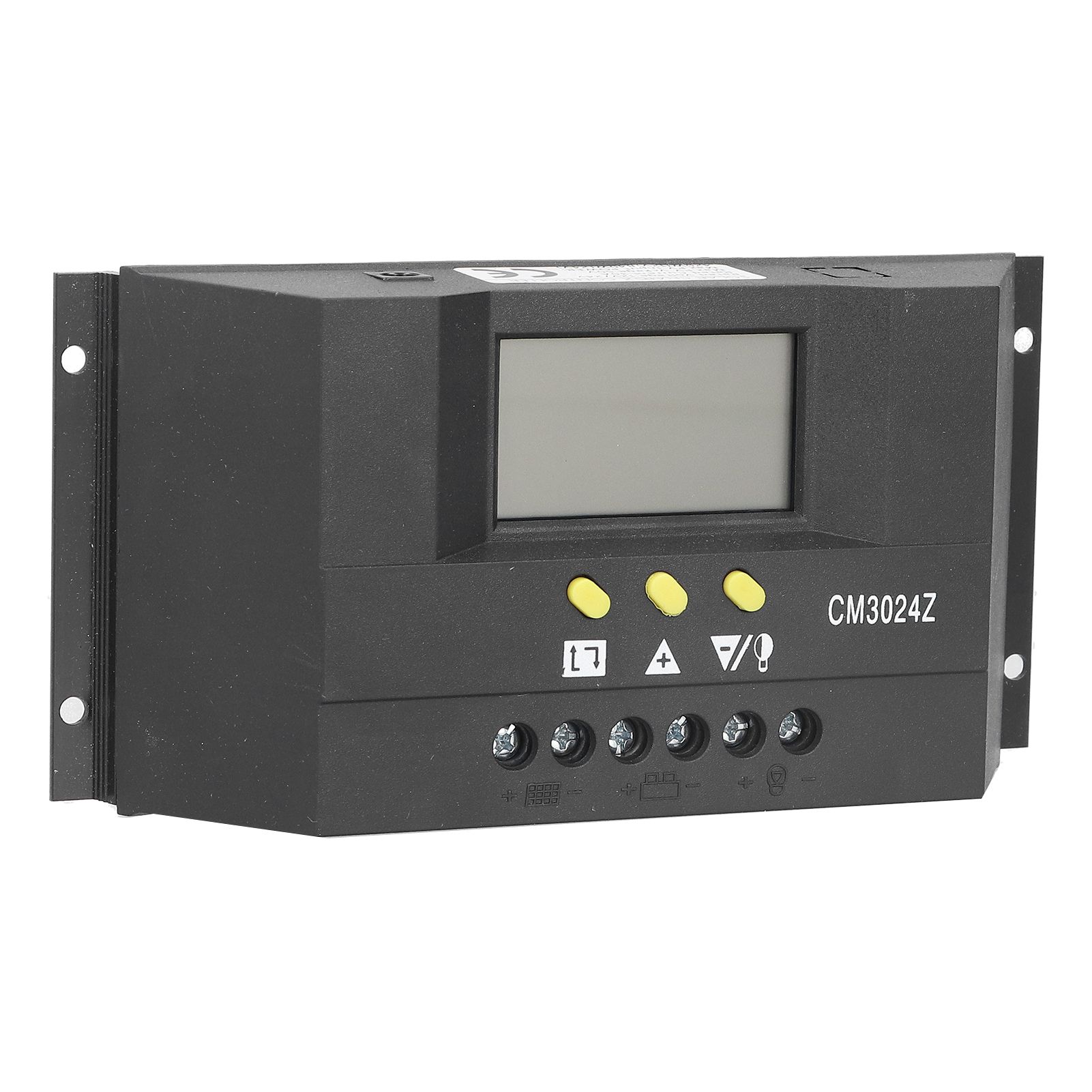

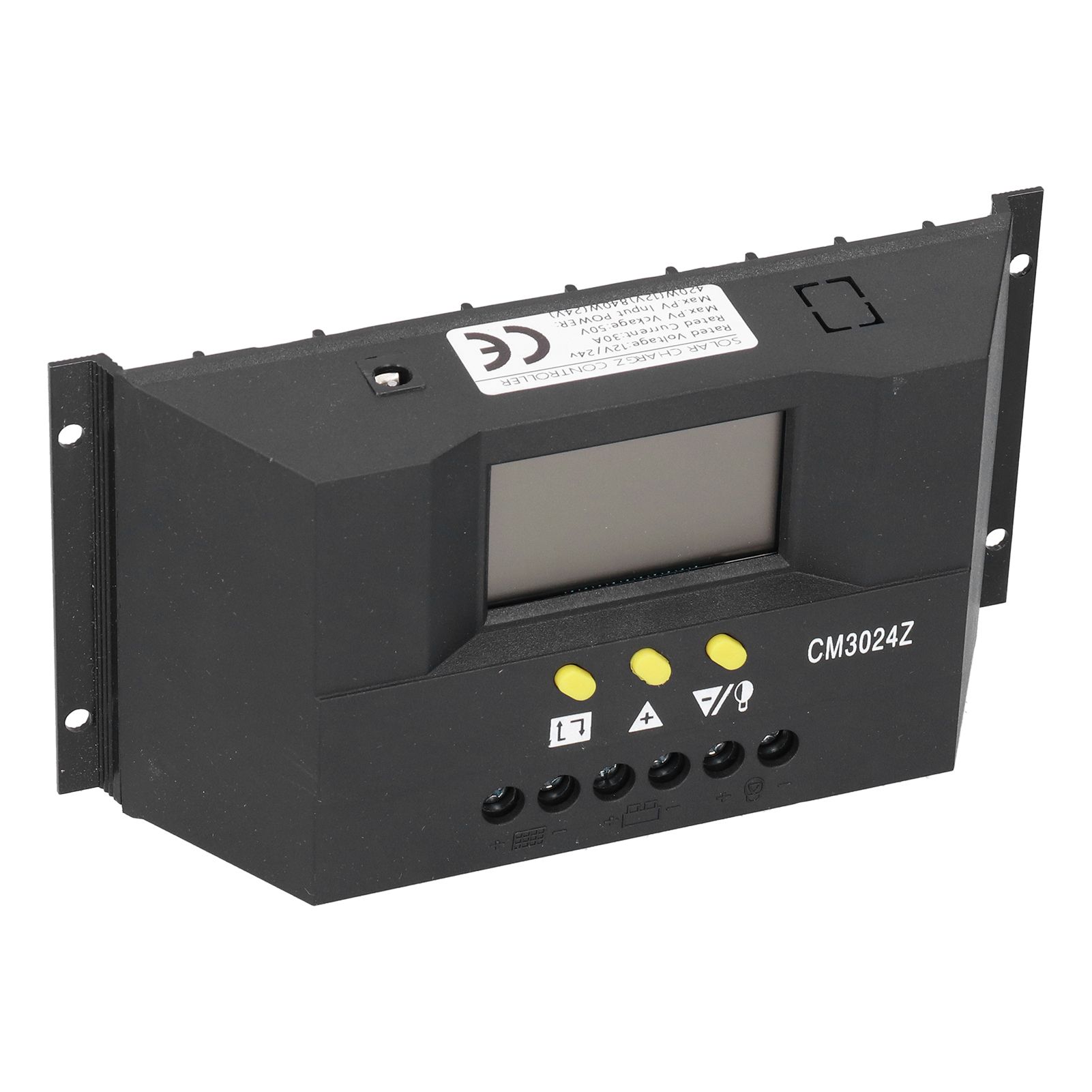

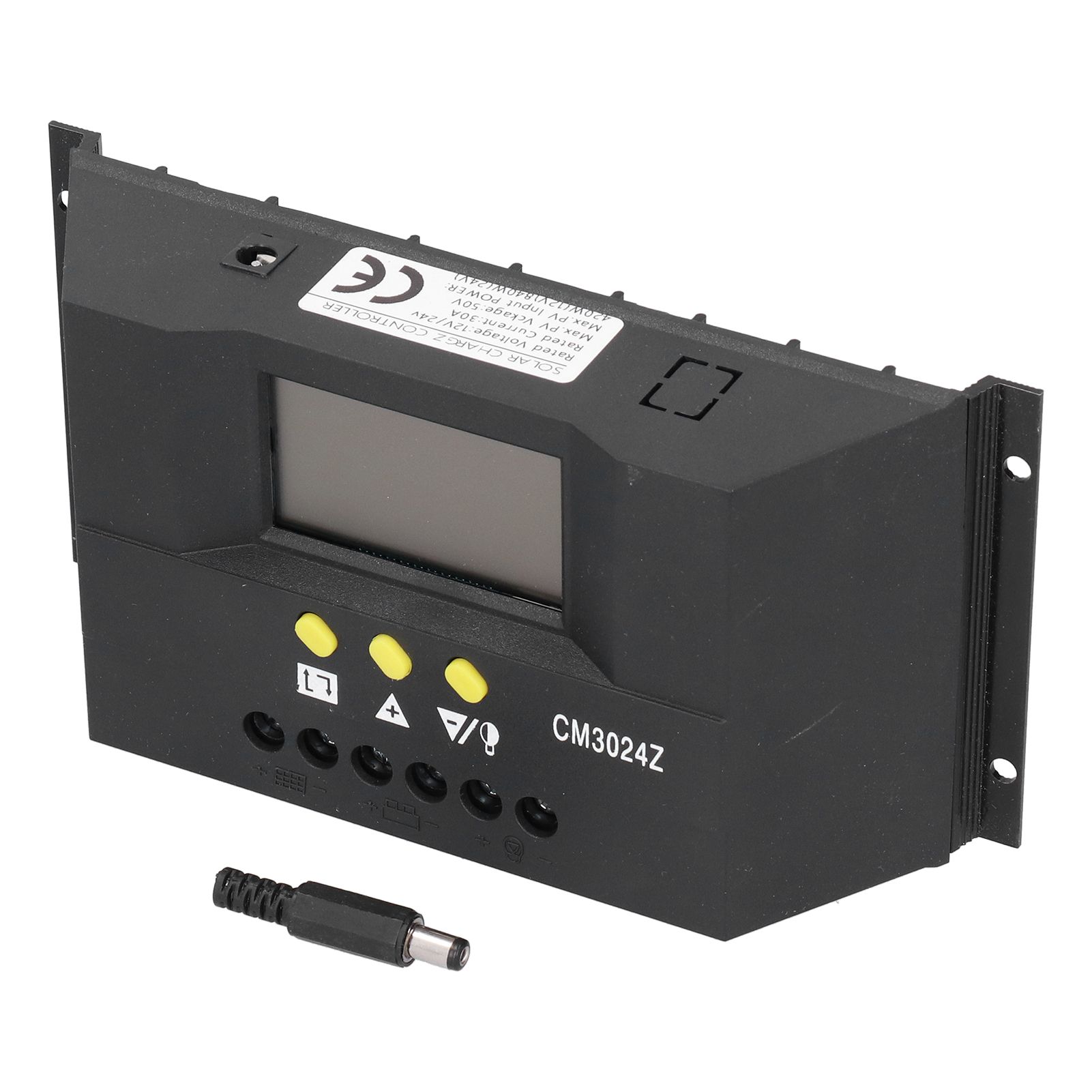

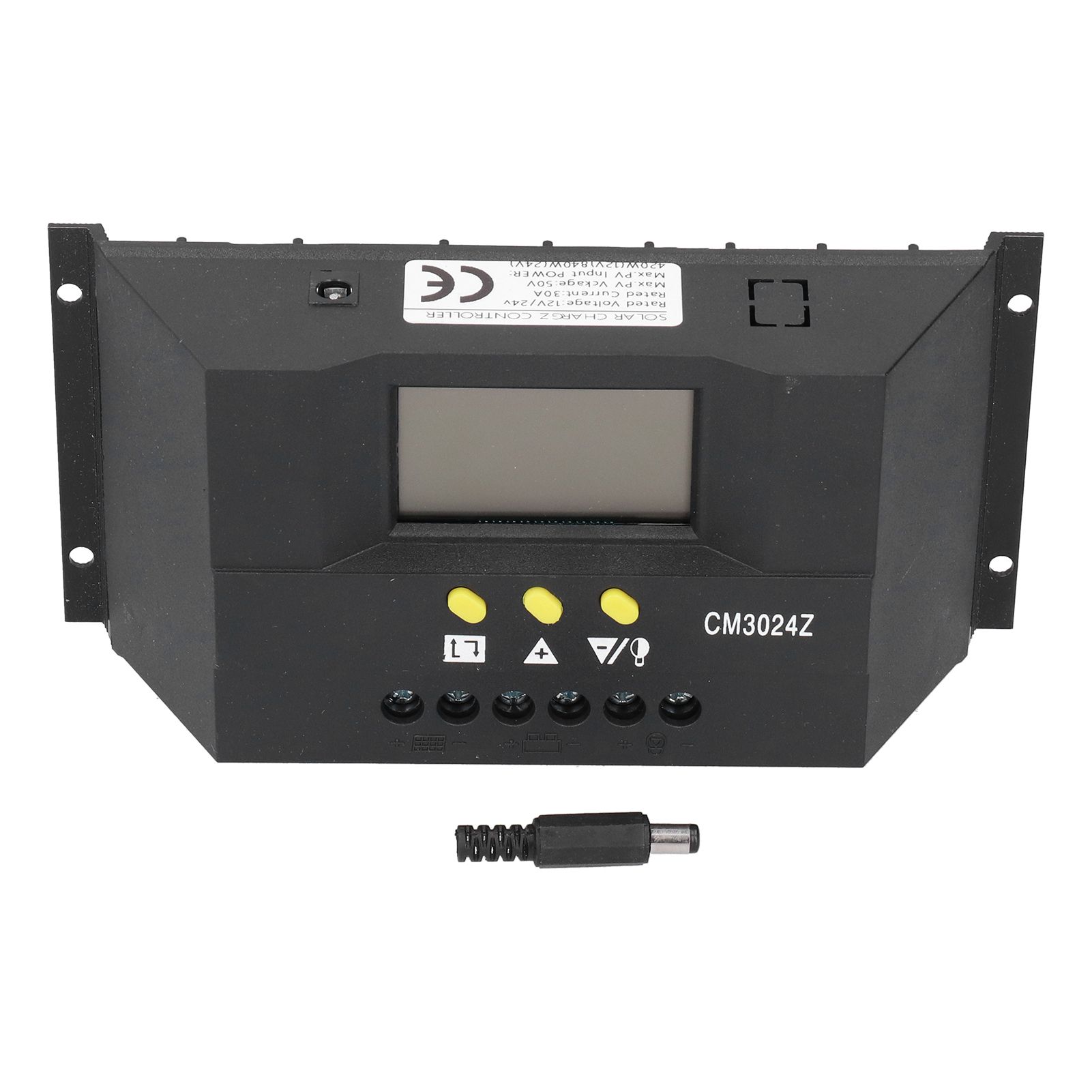

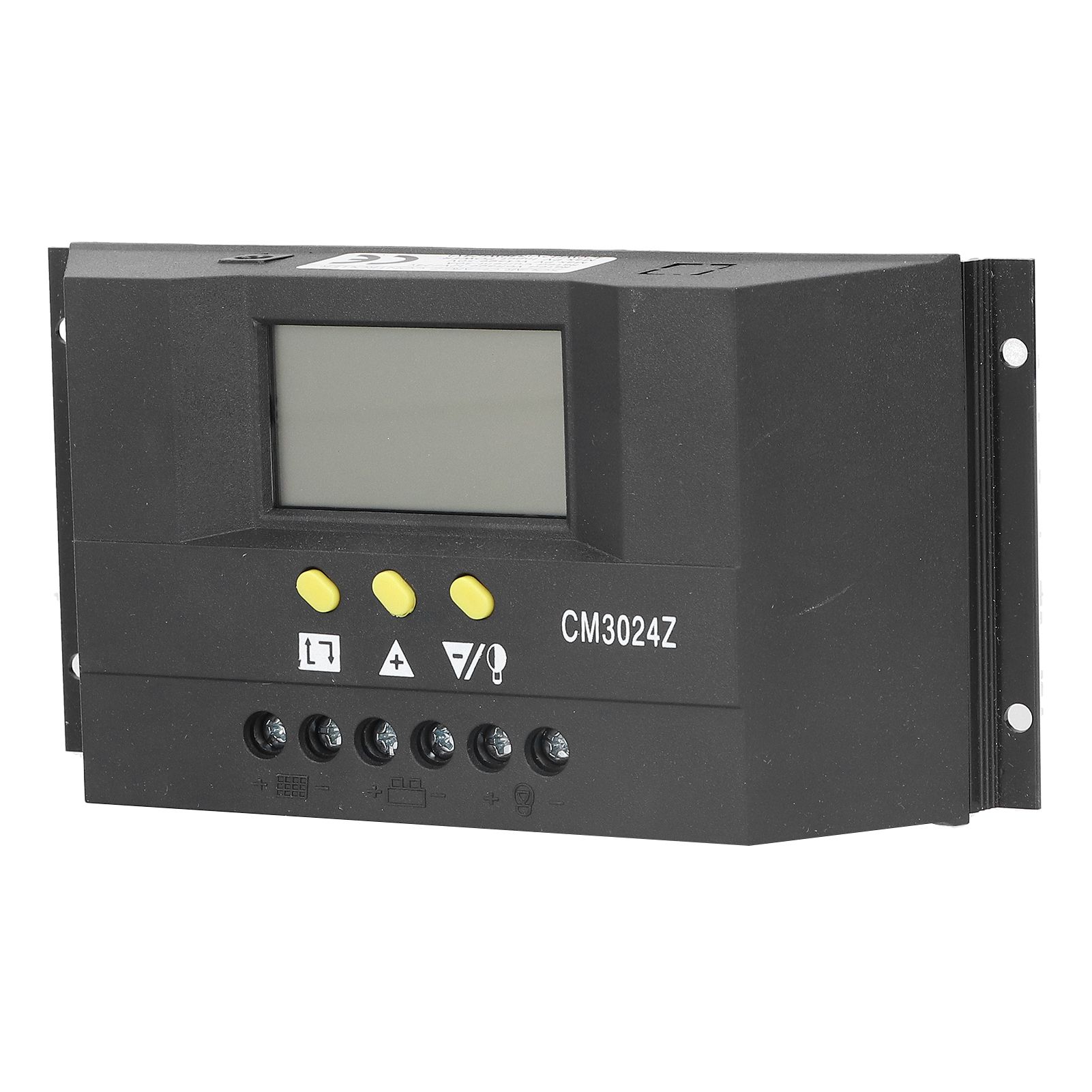

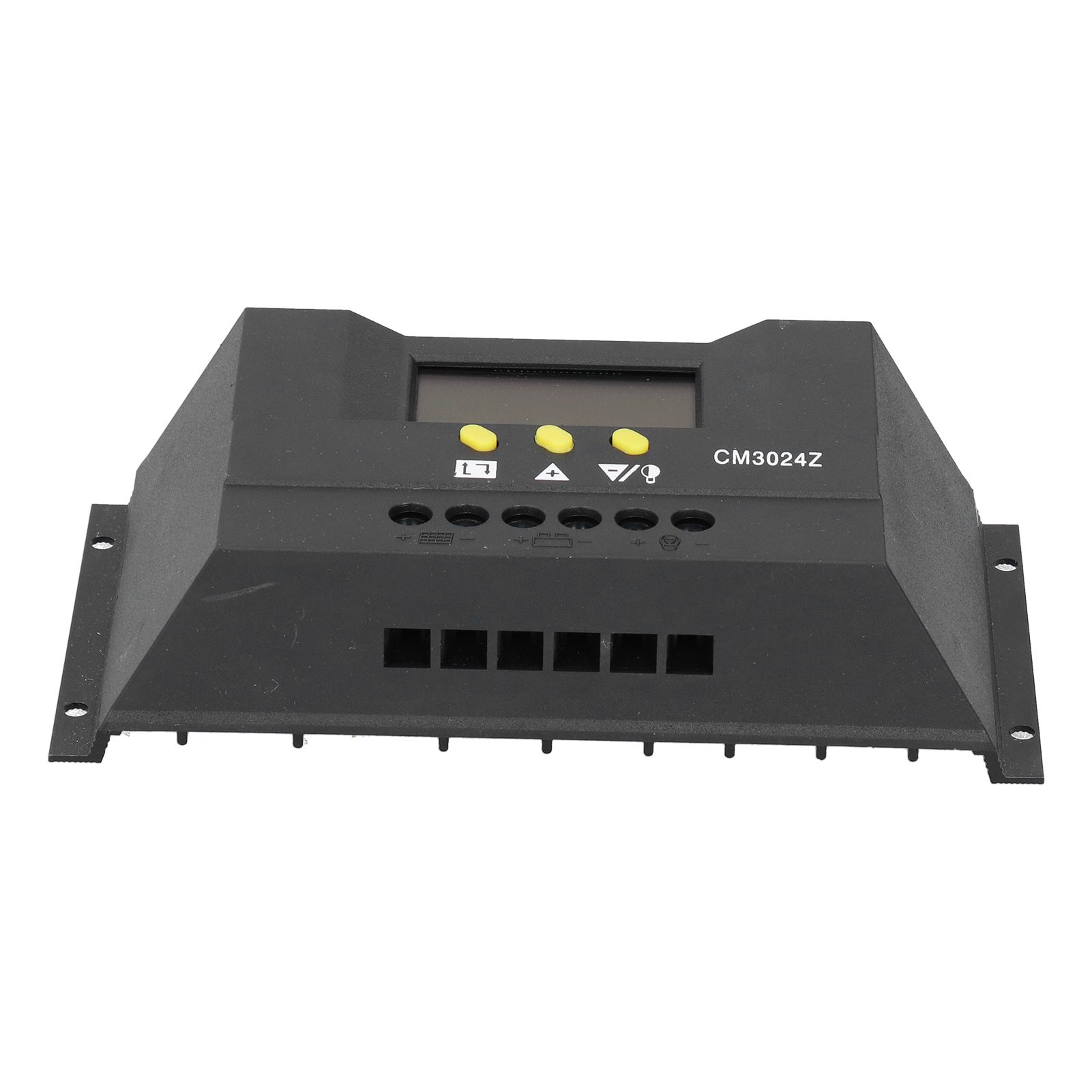

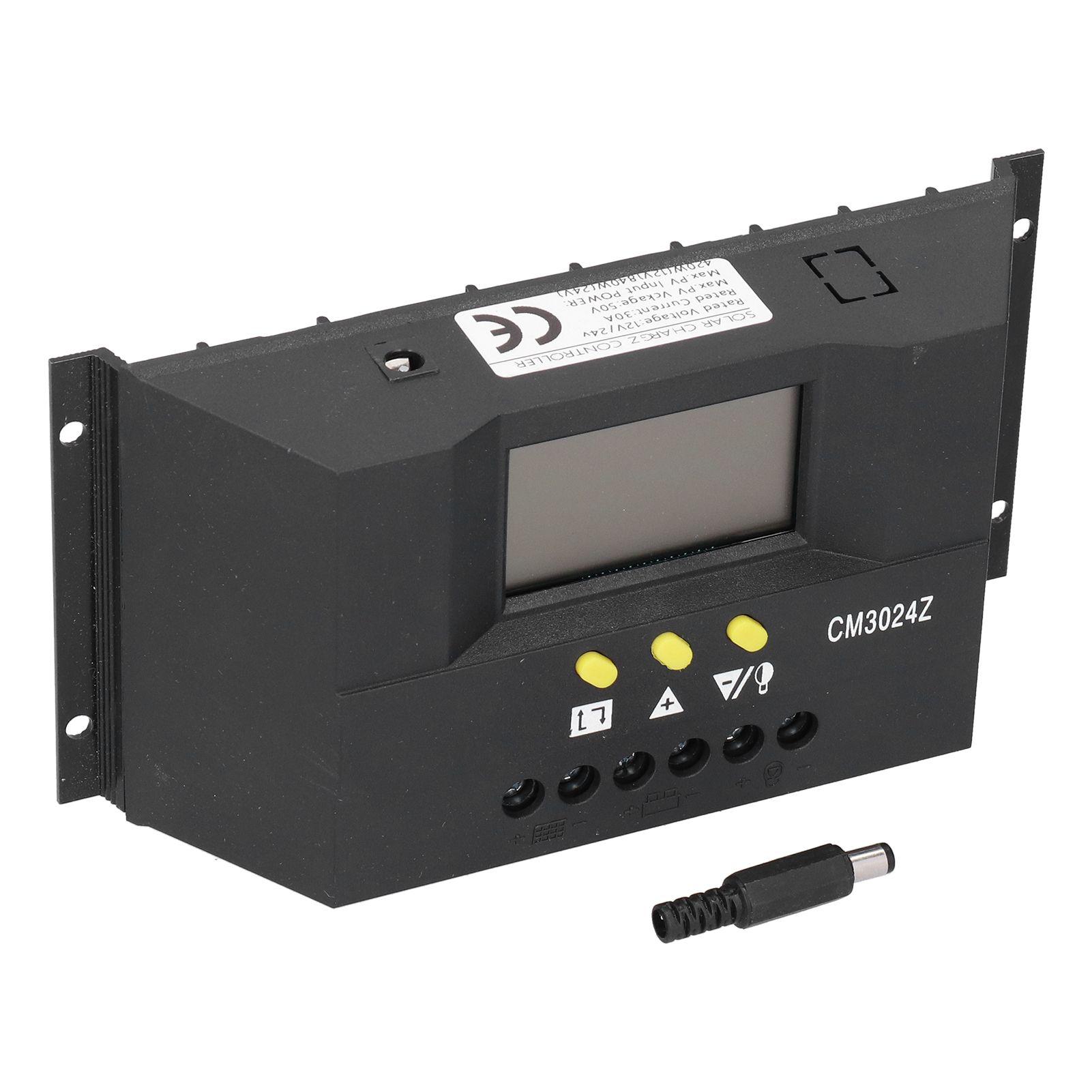

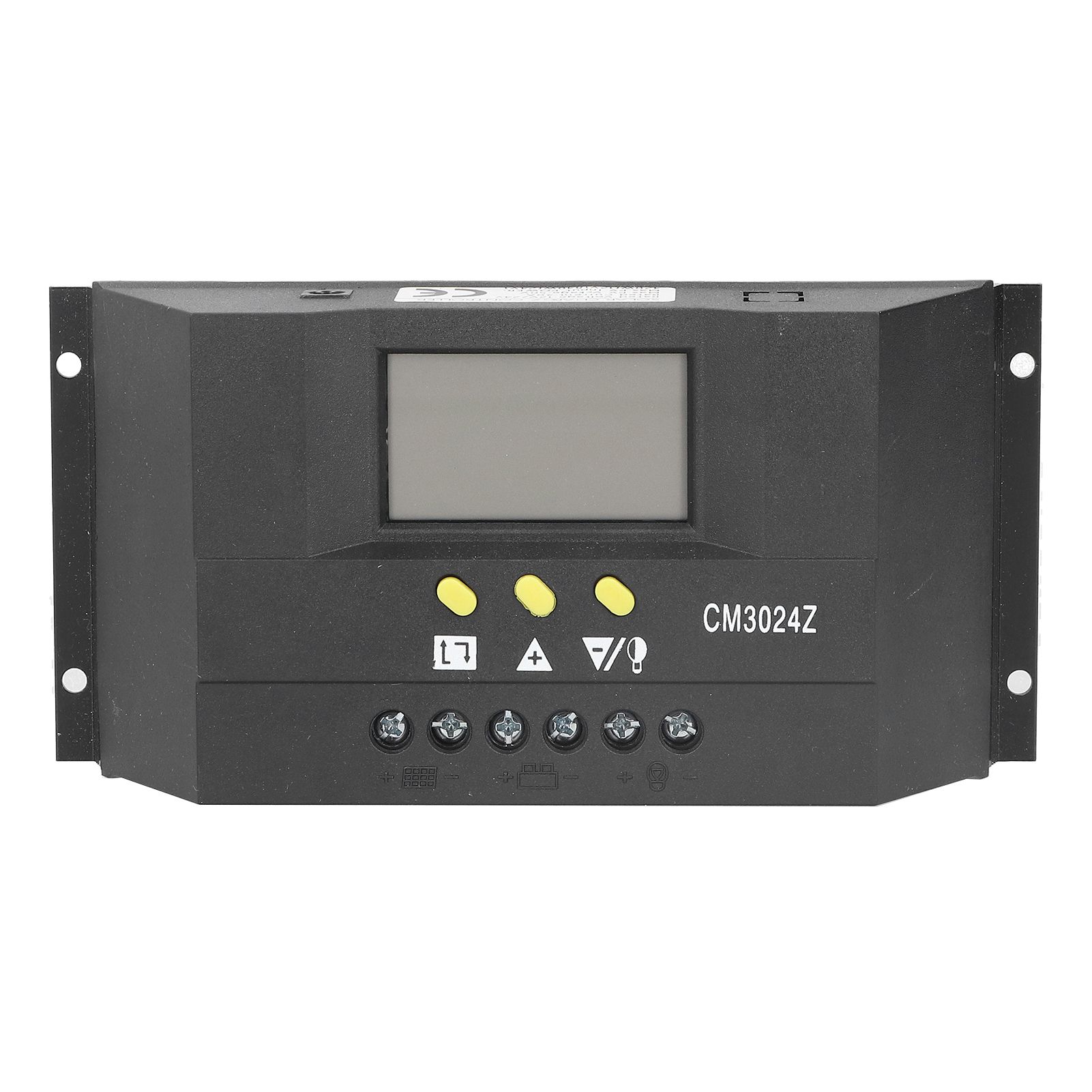

PWM Intelligent Solar Controller Photovoltaic Power Generation Solar Charge Controller 12V/24V30A

1、EASY TO USE The solar charge and discharge controller adopts automatic system voltage level recognition and intelligent PWM charging method.
2、WIDE CONTROL RANGE The control parameters of the solar charge and discharge controller can be flexibly set to meet your different application requirements.
3、LCD DISPLAY Solar controller with large screen, image LCD graphic, simple button operation.
4、TEMPERATURE COMPENSATION Solar voltage regulator PWM charger, with automatic temperature compensation, adjustable charging and discharging control parameters.
5、SAFE TO USE The solar charge controller has built‑in safety hours accumulation of charge and discharge, battery reverse discharge, battery undervoltage, battery reverse connection, overload, and short circuit protection.
Item Type: Solar Controller
Material: ABS
Weight: Approx. 320g / 11.3oz
Product Size: Approx. 182x91x50mm / 7.2x3.6x2.0in
Protection Function: Battery undervoltage protection, overload, short circuit protection, battery reverse discharge protection, battery reverse connection protection
Rated working voltage
24V
Solar panel voltage
≤100V
Float voltage
55.2V
Undervoltage protection
42.8V
Undervoltage recovery
50.0V
Load loss
≤30mA
Circuit pressure drop
≤170mV
Charging mode
PWM mode
1 x Solar Controller
1 x Probe
1 x English Manual
