Hidden Hinge Drilling Jig Template Locator for Cabinet Door Installation, Adjustable Punch Positioner Tool with Multi-Spec Screw Hole Guidance for Woodworking Projects (Black)

Sold By : Shopperslane

Brand:

Hidden Hinge Drilling Jig Template Locator for Cabinet Door Installation, Adjustable Punch Positioner Tool with Multi-Spec Screw Hole Guidance for Woodworking Projects (Black)

SKU: V1341-ZY-TJYYQAJB-BLACK
$90.99

12 MONTHS AUSSIE WARRANTY

DELIVERY IN AUSTRALIA ONLY

SHIPS NEXT BUSINESS DAY WITH TRACKING

AVAILABLE ONLINE ONLY

In stock

Secure checkout

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Shipping Estimates Estimated delivery 3–7 business days when shipped from Melbourne.

Product details

Product Title

Hidden Hinge Drilling Jig Template Locator for Cabinet Door Installation, Adjustable Punch Positioner Tool with Multi-Spec Screw Hole Guidance for Woodworking Projects

Product Description

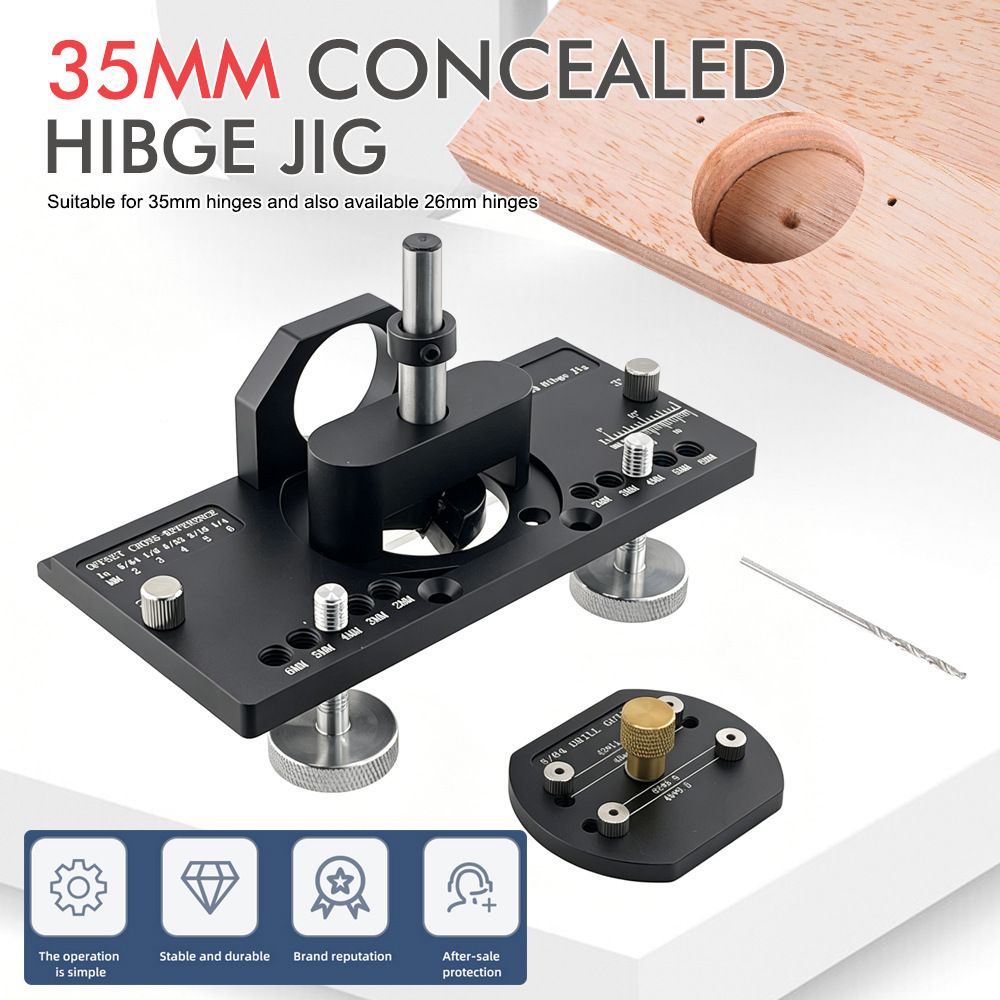

Achieving perfectly aligned concealed hinge cups on cabinet doors can make the difference between a wobbly, misaligned door and a smooth, professional finish. This hidden hinge drilling jig is designed for woodworkers who demand repeatable accuracy without the guesswork. The rectangular metal body, finished in black with silver adjustment components and gold knobs, features clear scales and multiple drilling positions. It accommodates 35mm and 26mm concealed hinges, offers 2-6mm hinge hole edge distance adjustment, supports board thickness up to 30mm, and allows drilling depth control from 0-25mm. The jig also provides multi-specification screw hole positioning for 42mm, 45mm, 48mm, and 52mm hinge screw patterns. An optional dust extraction bracket can be attached to reduce airborne debris during operation. Whether you are a professional cabinetmaker or a serious DIY enthusiast, this tool helps you measure twice, cut once—or in this case, drill once with confidence. The included circular locators and drill bits work together to keep every bore consistent across multiple doors. Setup is straightforward: align the jig, lock the settings, and drill. The metal construction resists wear from repeated use, while the adjustable knobs let you switch between hinge sizes and edge distances quickly. Ideal for kitchen cabinets, wardrobes, bathroom vanities, and custom furniture projects, this hinge drilling locator transforms a fiddly task into a controlled, efficient process. Its compact size makes it easy to store and transport between job sites.

Key Features

  • Dual Hinge Compatibility: Accepts both 35mm and 26mm concealed hinge cup sizes for versatile cabinet door installation.
  • Adjustable Edge Distance: Hinge hole edge distance can be set from 2mm to 6mm to match different door overlay requirements.
  • Board Thickness Capacity: Works with panels up to 30mm thick, covering common cabinet and furniture board dimensions.
  • Depth Control Range: Drilling depth is adjustable from 0mm to 25mm for precise hinge cup recesses.
  • Multi-Spec Screw Hole Positioning: Supports 42mm, 45mm, 48mm, and 52mm hinge screw hole patterns, plus an optional dust extraction bracket connection.

    • Important Notes

  • This product is a drilling locator tool only; it does not include the cabinet doors, hinges, or the drill machine itself.
  • Always wear appropriate eye and respiratory protection when drilling, especially if not using the dust extraction bracket.
  • The jig is not a medical or therapeutic device and is not intended for any health-related applications. Use only for woodworking drilling guidance.
  • Before drilling on finished panels, test the settings on scrap material of the same thickness to confirm alignment.
  • Keep the metal body clean and lightly oiled to prevent rust and maintain smooth adjustment of the knobs and locators.
