Digital Clamp Meter AC/DC Voltage Resistance Frequency DM6266 - Batteries Incl.

Sold By : Shopperslane

Brand:

Digital Clamp Meter AC/DC Voltage Resistance Frequency DM6266 - Batteries Incl.

SKU: V563-CK29865
$35.99

12 MONTHS AUSSIE WARRANTY

DELIVERY IN AUSTRALIA ONLY

SHIPS NEXT BUSINESS DAY WITH TRACKING

AVAILABLE ONLINE ONLY

In stock

Secure checkout

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Shipping Estimates Estimated delivery 3–7 business days when shipped from Melbourne.

Product details

Digital Clamp Meter AC/DC Voltage Resistance Frequency DM6266 - Batteries Incl.

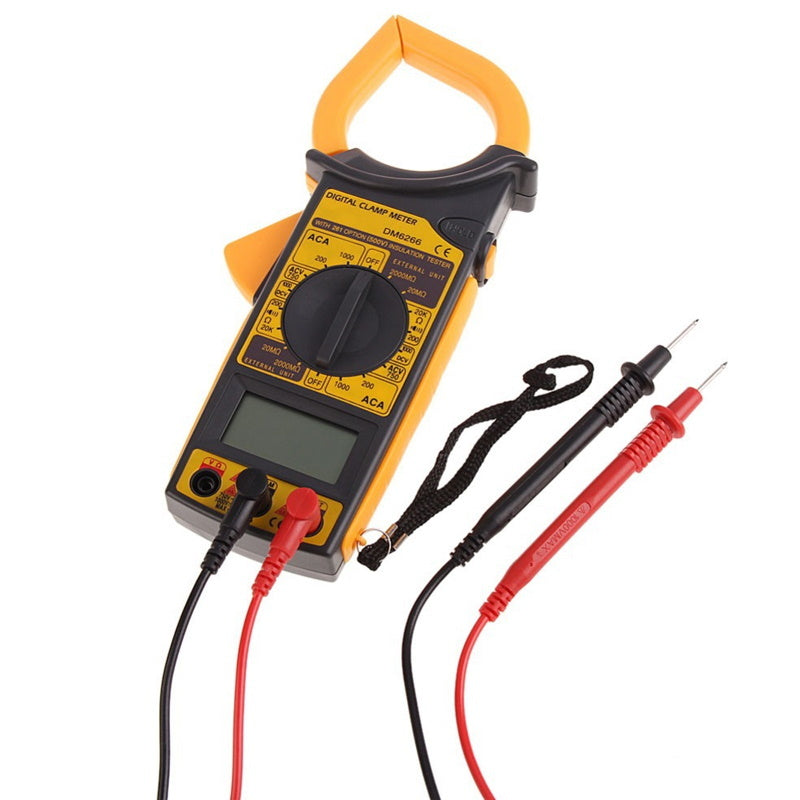

DM6266 multifunction digital clamp meter

  • Fully functional overload protection
  • Measures AC current, AC voltage, DC voltage, resistance, frequency, Temperature
  • Portable design, one-hand operation, easy to use
  • Clamp with a double insulation protection, enhanced anti-jamming
  • Non-contact measurement, to improve the measurement safety.

Specifications:

V563-CK29865
  • DC voltage: 1000V ± (0.8% + 2)
  • AC voltage: 750V ± (1.2% + 4)
  • AC current: 200A / 1000A ± (2.5% / 3.0% + 5)
  • Resistance: 200Ω / 20kΩ ± (1.0% + 1)
  • Continuity alarm
  • Low voltage display
  • Data Hold
  • Input impedance: 10MΩ
  • Sampling frequency: 3 times / s
  • AC Frequency: (40-400) Hz
  • Manual range
  • Maximum display: 1999
  • Jaw opening: 50mm
  • Power: 9V (6F22) Battery x 1
  • Colors: body - dark gray
Description

Digital Clamp Meter AC/DC Voltage Resistance Frequency DM6266 - Batteries Incl.

DM6266 multifunction digital clamp meter

  • Fully functional overload protection
  • Measures AC current, AC voltage, DC voltage, resistance, frequency, Temperature
  • Portable design, one-hand operation, easy to use
  • Clamp with a double insulation protection, enhanced anti-jamming
  • Non-contact measurement, to improve the measurement safety.

Specifications:

V563-CK29865
  • DC voltage: 1000V ± (0.8% + 2)
  • AC voltage: 750V ± (1.2% + 4)
  • AC current: 200A / 1000A ± (2.5% / 3.0% + 5)
  • Resistance: 200Ω / 20kΩ ± (1.0% + 1)
  • Continuity alarm
  • Low voltage display
  • Data Hold
  • Input impedance: 10MΩ
  • Sampling frequency: 3 times / s
  • AC Frequency: (40-400) Hz
  • Manual range
  • Maximum display: 1999
  • Jaw opening: 50mm
  • Power: 9V (6F22) Battery x 1
  • Colors: body - dark gray
