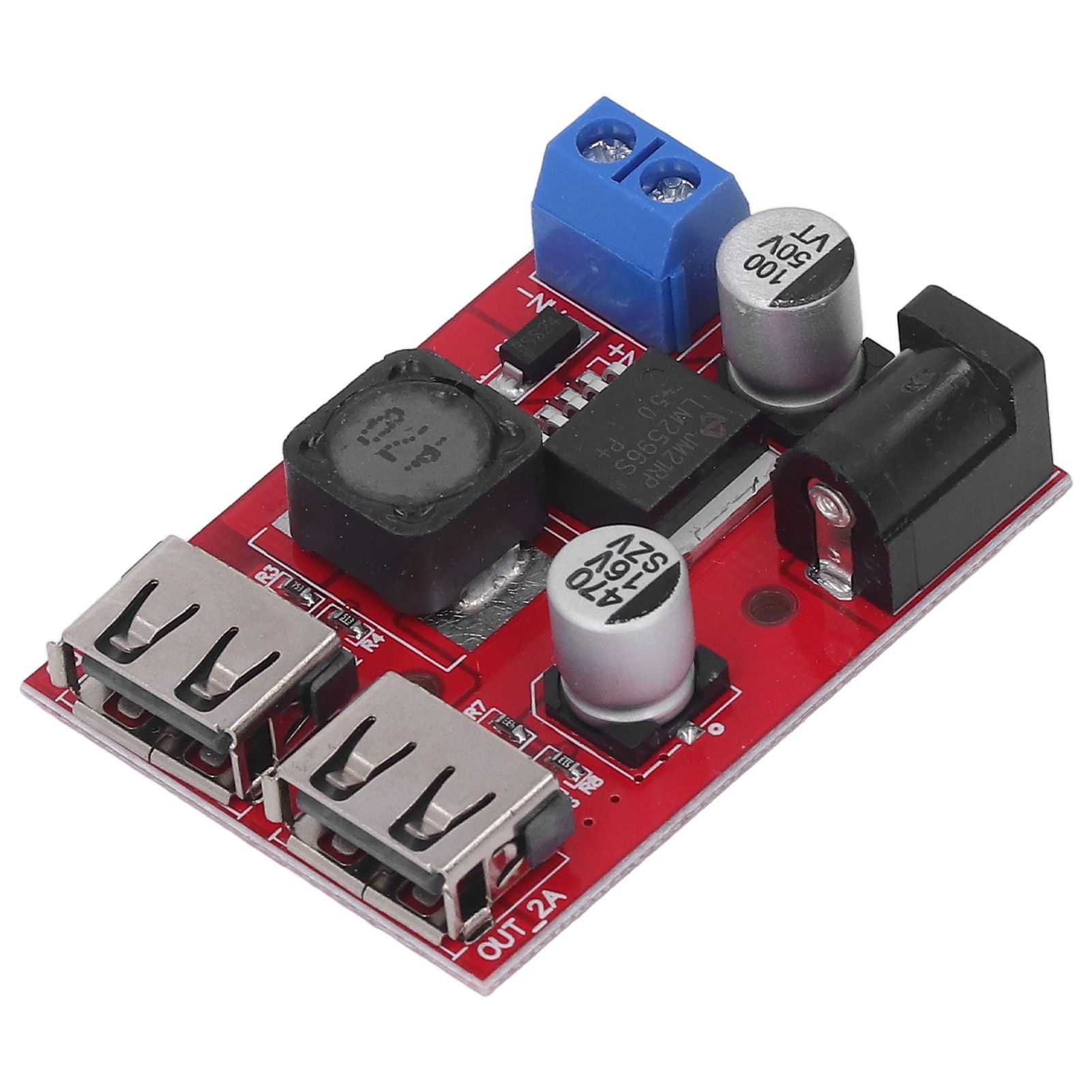

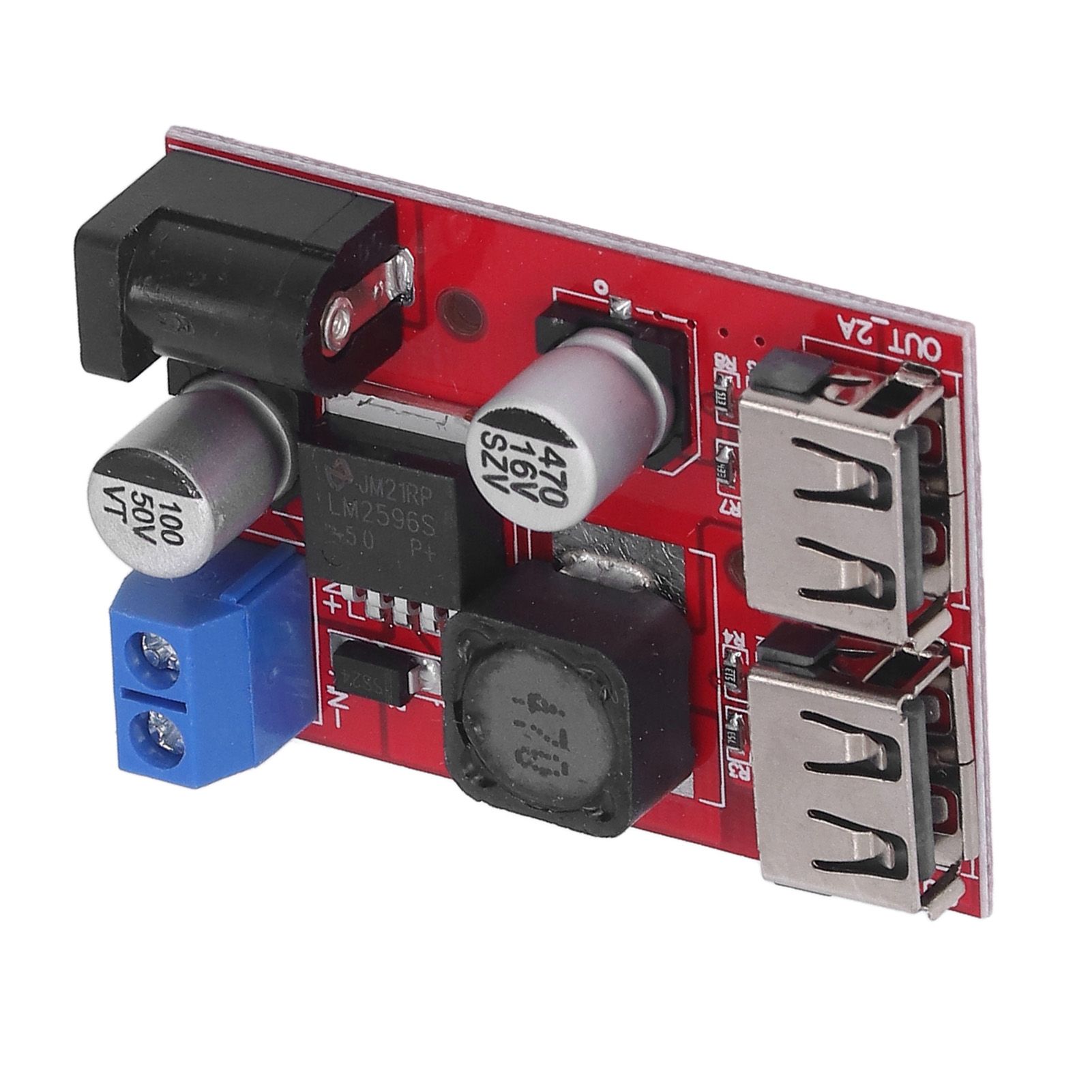

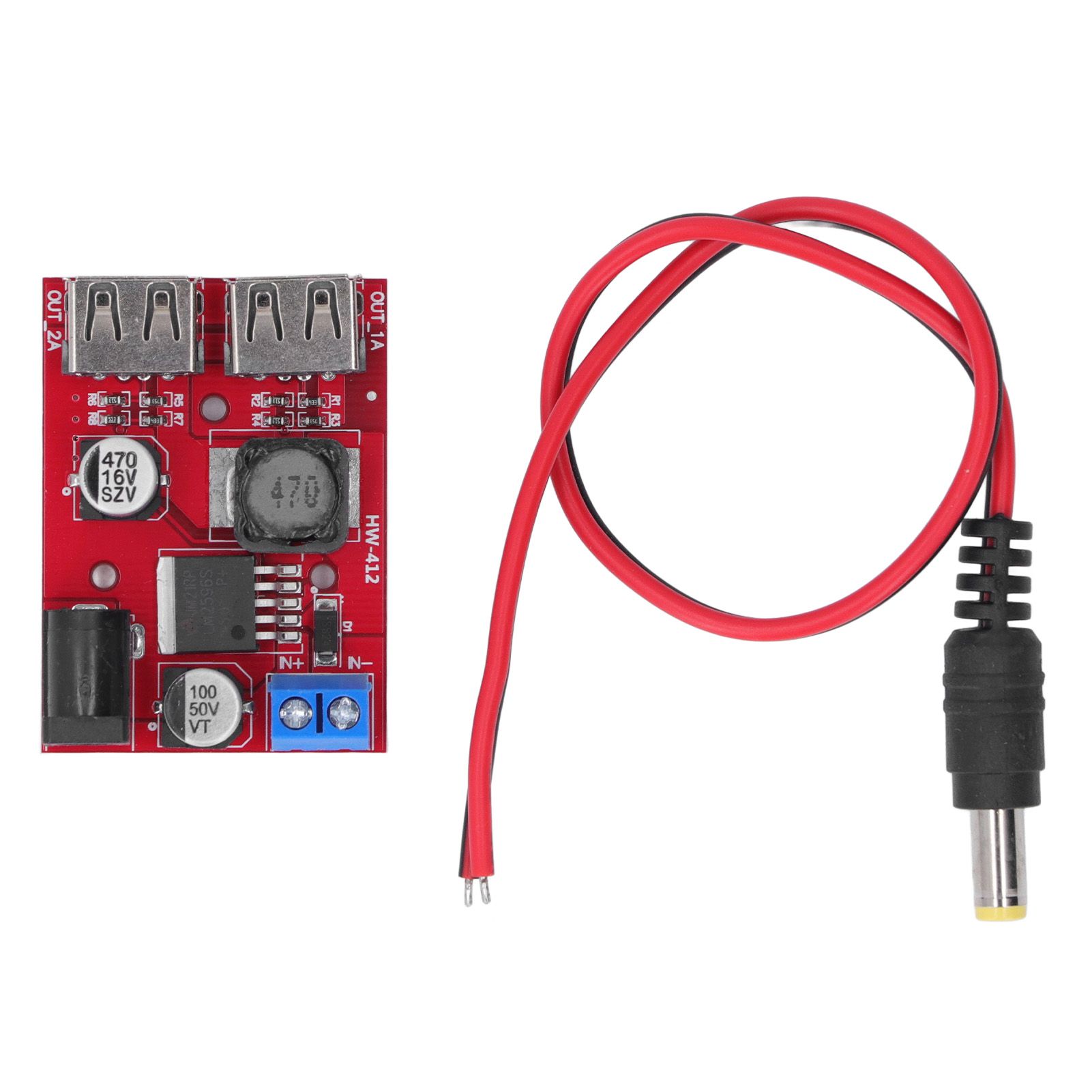

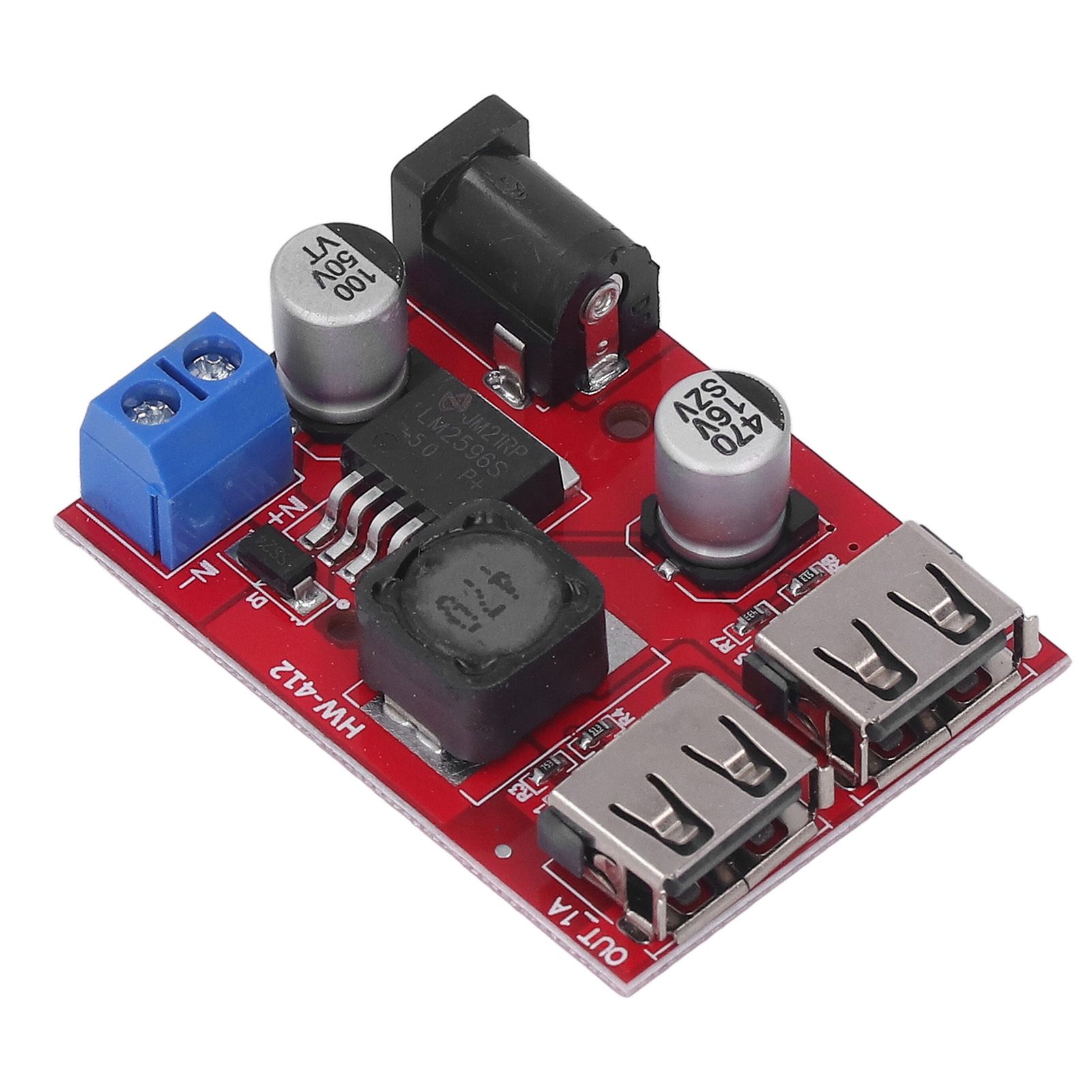

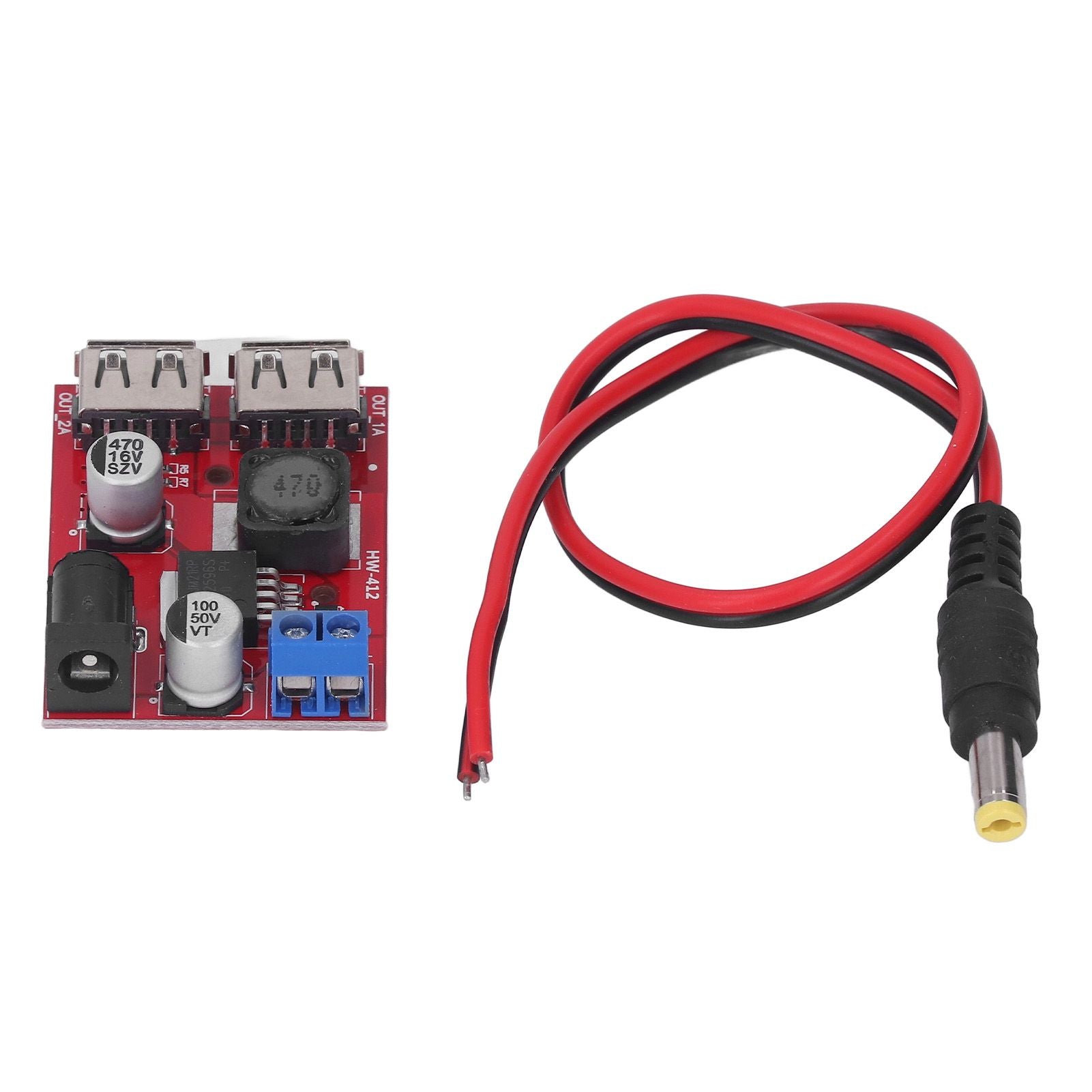

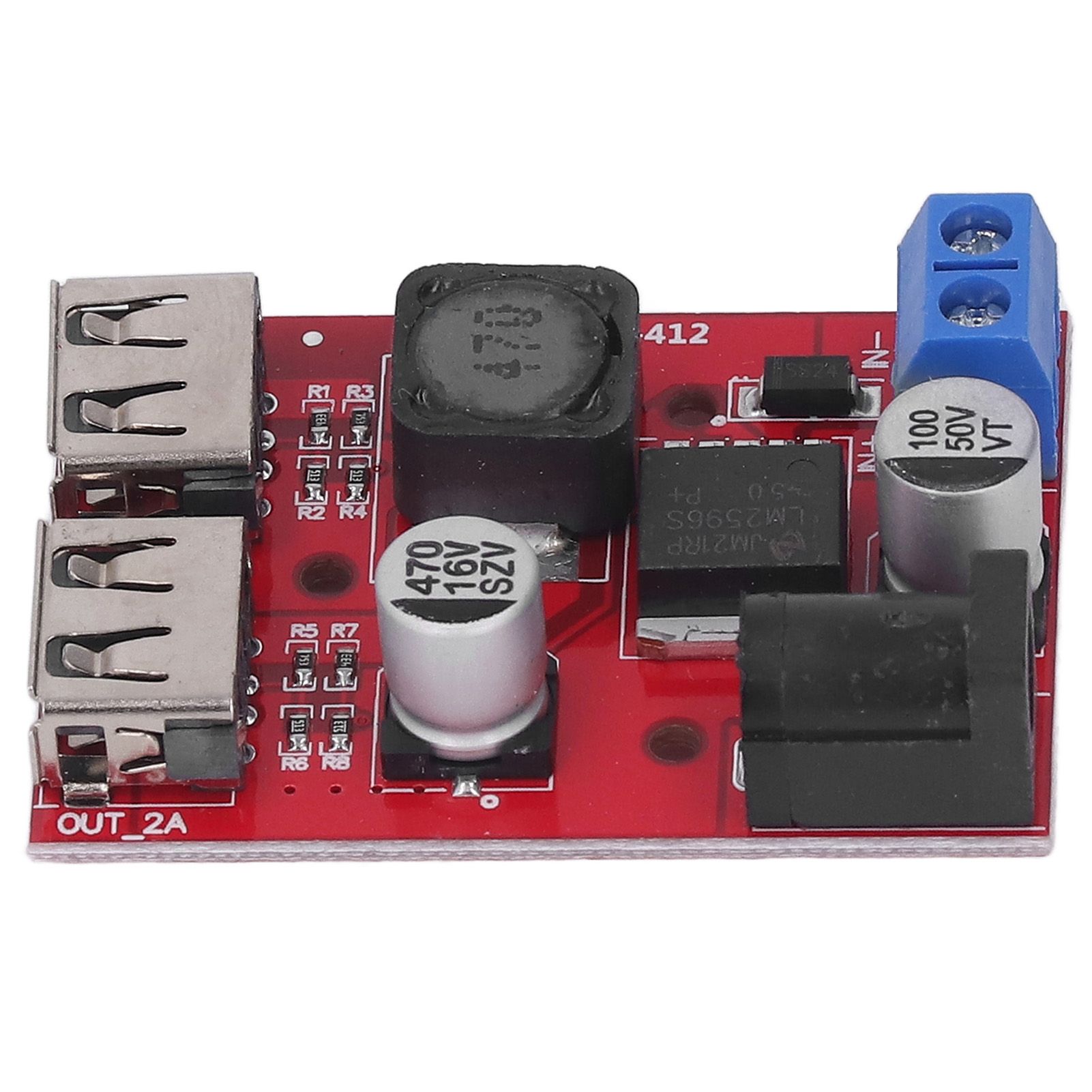

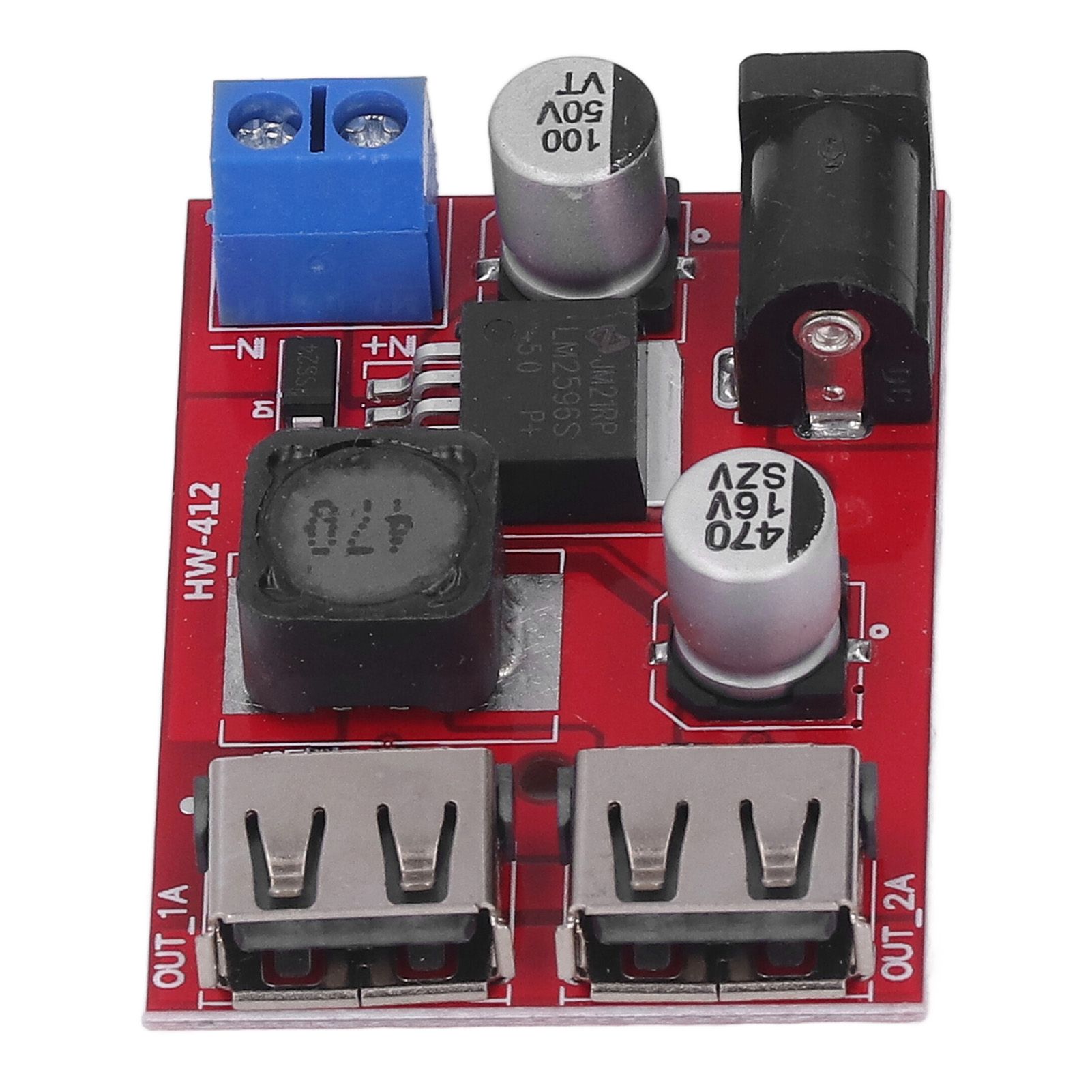

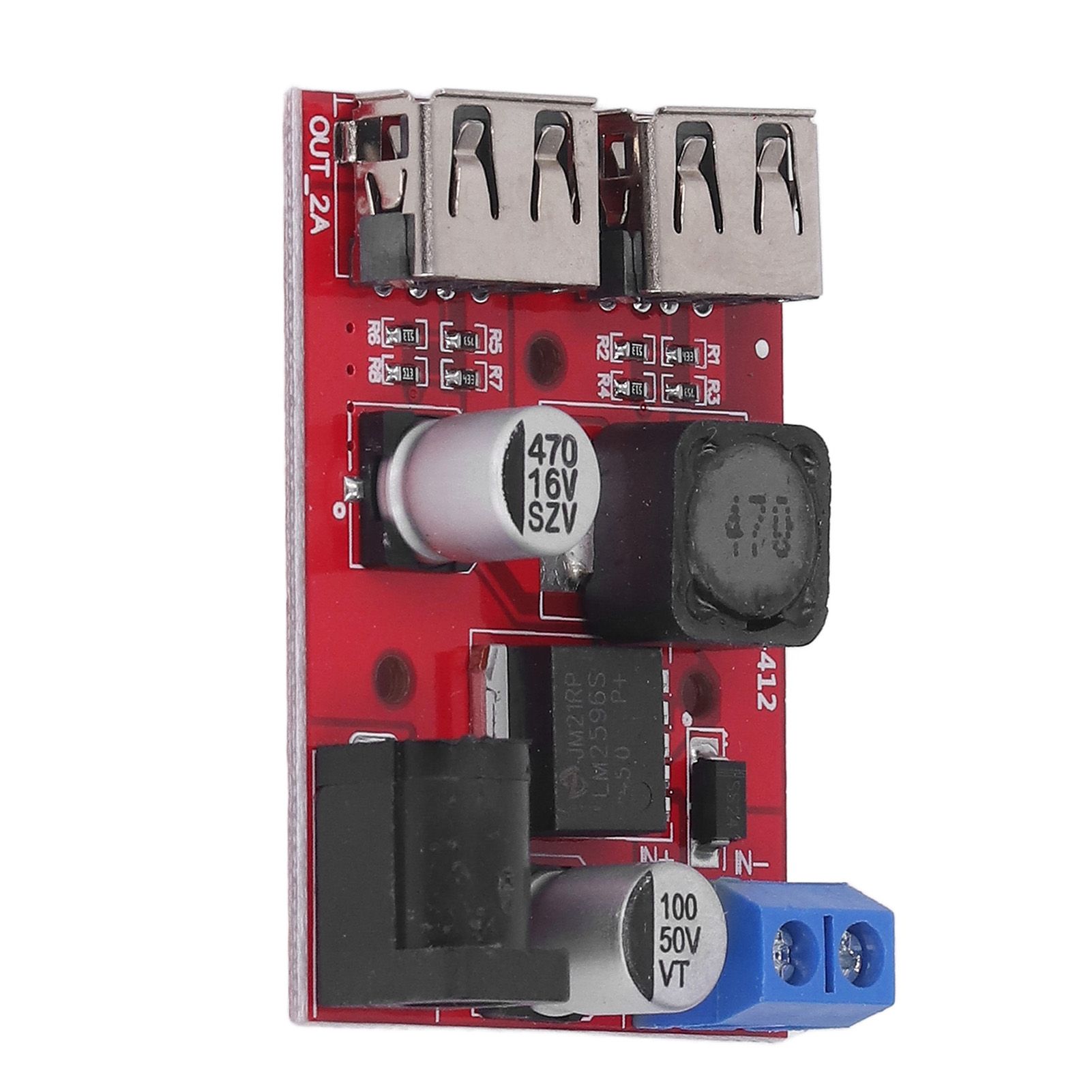

DC 6V‑30V to 5V Solar Controller Circuit Board Voltage Stabilizing Controller Solar Power Buck USB Circuit Board

1、Load Protection: DIY a regulated power supply with constant current function, not afraid of using the process will short circuit, can preserve the load.

2、Battery Charging: Charge various batteries, set charging voltage and charging current according to different voltage and capacity of batteries.

3、Solar Power Supply: Use solar panel power supply to charge various batteries, can prevent the battery from overcharging and effectively preserve the battery.

4、High Power Drive: This solar voltage regulator board can drive high power LEDs, which can be freely combined in series and parallel.

5、Car Power Supply: Can be used as a car power supply for cell phones, laptops or various digital products, convenient and fast to use.

Item Type: Solar Controller Circuit Board

Material: Glass Fiber

Gross Weight: 33g / 1.2oz

Module Type: dual USB output 3A buck module

Power Protection: None

Input Voltage: DC 6-30V

Output Voltage: 5V (with for iOS identification resistor)

Output Current: 2A (MAX)

Current Limit Range: None

Operating Frequency: 150KHz

Conversion Efficiency: up to about 92% efficiency is related to the differential pressure and use of the environment

Output Ripple: None

Minimum Differential Voltage: 1V

Operating Temperature: -40℃ to +85℃ (actual use please pay attention to the power tube temperature, the temperature is too high, please strengthen the heat dissipation or derate the use)

Potentiometer Adjustment Direction: adaptive

Wiring Mode: DC 5.5 2.1 socket, terminal block

Use: Solar voltage stabilization controller

1 x Circuit Board

1 x DC Line

1 x Manual
