Aluminum Alloy Cabinet Handle Drilling Jig with Adjustable Cross Sliding Structure for Precise Hole Positioning on Drawers, Cupboards, Wardrobes and File Shelves (Red)

Sold By : Shopperslane

Brand:

Aluminum Alloy Cabinet Handle Drilling Jig with Adjustable Cross Sliding Structure for Precise Hole Positioning on Drawers, Cupboards, Wardrobes and File Shelves (Red)

SKU: V1341-ZY-A7LKDZNE-RED
$54.99

12 MONTHS AUSSIE WARRANTY

DELIVERY IN AUSTRALIA ONLY

SHIPS NEXT BUSINESS DAY WITH TRACKING

AVAILABLE ONLINE ONLY

In stock

Secure checkout

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Shipping Estimates Estimated delivery 3–7 business days when shipped from Melbourne.

Product details

Product Title

Aluminum Alloy Cabinet Handle Drilling Jig with Adjustable Cross Sliding Structure for Precise Hole Positioning on Drawers, Cupboards, Wardrobes and File Shelves

Product Description

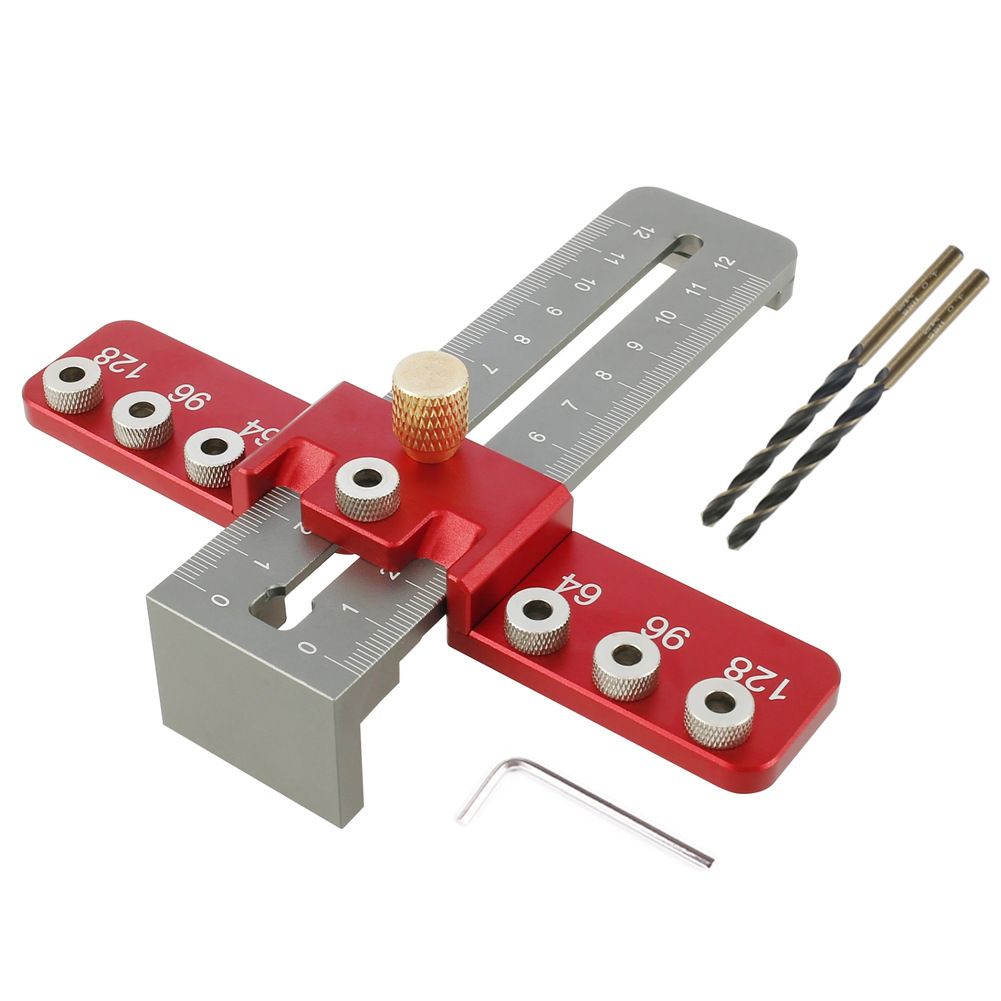

Achieving perfectly aligned handle holes on cabinet doors and drawers can be a frustrating task, especially when working with multiple units that demand consistent spacing. This aluminum alloy drilling jig simplifies the process by combining a sliding cross-shaped frame with a graduated adjustment scale, allowing you to lock in the exact hole distance before you ever touch a drill. The red positioning arms and silver-gray measurement ruler work together to hold the bit steady, while the stainless steel drill sleeves protect the jig from wear during repeated use. Brass adjustment knobs provide smooth, secure tightening without stripping, and the included dual-color twist drill bits and hex wrench mean you can start working right out of the box. Whether you are installing handles on kitchen drawers, wardrobe doors, or office filing shelves, this tool helps you measure twice, cut once in the most literal sense. The 5mm drill sleeve accommodates common handle screws, and the adjustable edge distance range gives you flexibility for both single-hole and dual-hole configurations. Lightweight yet durable, the jig resists slipping on smooth surfaces and keeps your drill bit perpendicular to the workpiece. From weekend DIY projects to professional furniture assembly, this handle drilling locator reduces layout time, minimizes wasted material, and delivers clean, repeatable results across 64mm, 96mm, and 128mm hole spacings. Its compact footprint stores easily in a toolbox, making it a practical addition for anyone who values accuracy and efficiency in woodworking and installation tasks.

Key Features

  • Adjustable Cross Sliding Structure: The red positioning arms slide along the silver-gray graduated scale, enabling quick setup for 64mm, 96mm, and 128mm hole distances without separate templates.
  • Durable Mixed-Material Build: Aluminum alloy body paired with stainless steel drill sleeves and brass adjustment knobs resists wear, corrosion, and deformation during repeated drilling.
  • Dual-Purpose Edge Distance Range: Dual-hole configuration adjusts from 10-100mm, while single-hole mode covers 15-100mm, suiting various cabinet and drawer edge profiles.
  • 5mm Drill Sleeve Compatibility: The stainless steel sleeve accepts the included dual-color twist drill bits, keeping the bit centered and preventing hole enlargement.
  • Complete Accessory Kit: Comes with dual-color twist drill bits and a hex wrench, so you can tighten the brass knobs and begin drilling immediately after unboxing.
  • Compact Dimensions for Storage: The gray scale measures 140mm long with a 37mm end width, and each red arm is 149mm long and 28mm wide, fitting easily in most toolbags.

    • Important Notes

  • This drilling jig is a positioning aid only and does not replace proper safety equipment; always wear eye protection and secure the workpiece before drilling.
  • The tool is designed for handle installation layout and is not intended for medical, therapeutic, or health-related applications.
  • Confirm your handle screw diameter matches the 5mm drill sleeve before use; using an incompatible bit may damage the sleeve or produce inaccurate holes.
  • Tighten the brass adjustment knobs firmly but avoid over-torquing, as excessive force may strip the threads or distort the sliding scale.
  • Clean the graduated scale and drill sleeves after each use to maintain visibility and smooth sliding; store in a dry place to prevent surface oxidation.
