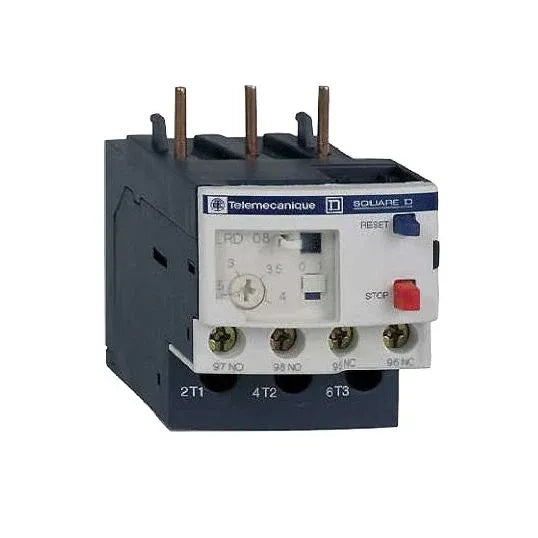

Schneider Thermal Overload Relay DIN Rail/Plate Mount 3 Pole 2.5-4A 690V 1NO-1NC Class 10A Blue Pushbutton IP20 | LRD-08

The Schneider Thermal Overload Relay (LRD-08) is designed for operational voltage up to 690 volts, making it ideal for protecting your electrical systems. With a setting range of 2.5 to 4.0 amps and a frequency capacity of 0-400 Hz, this Class 10A relay features a user-friendly red pushbutton stop and blue pushbutton reset control. It includes a 3-pole configuration with both normally open and normally closed contacts, ensuring compatibility with LC1D09 to LC1D38 contactors. Built for durability, it operates in temperatures from -20 to 60 degrees Celsius and can be easily mounted on DIN rails or plates. Perfect for reliable thermal protection in industrial applications.
