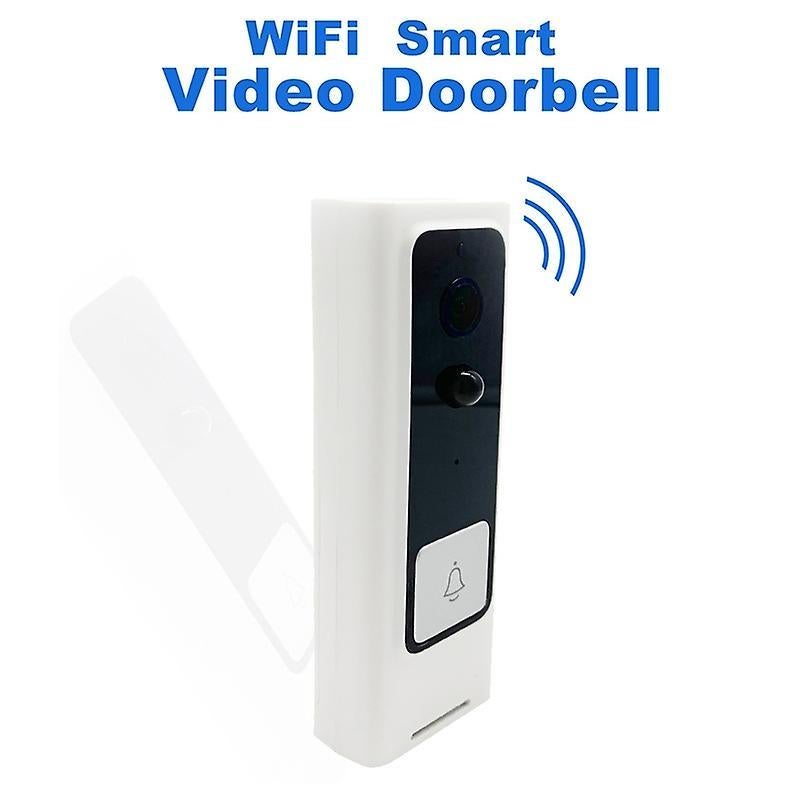

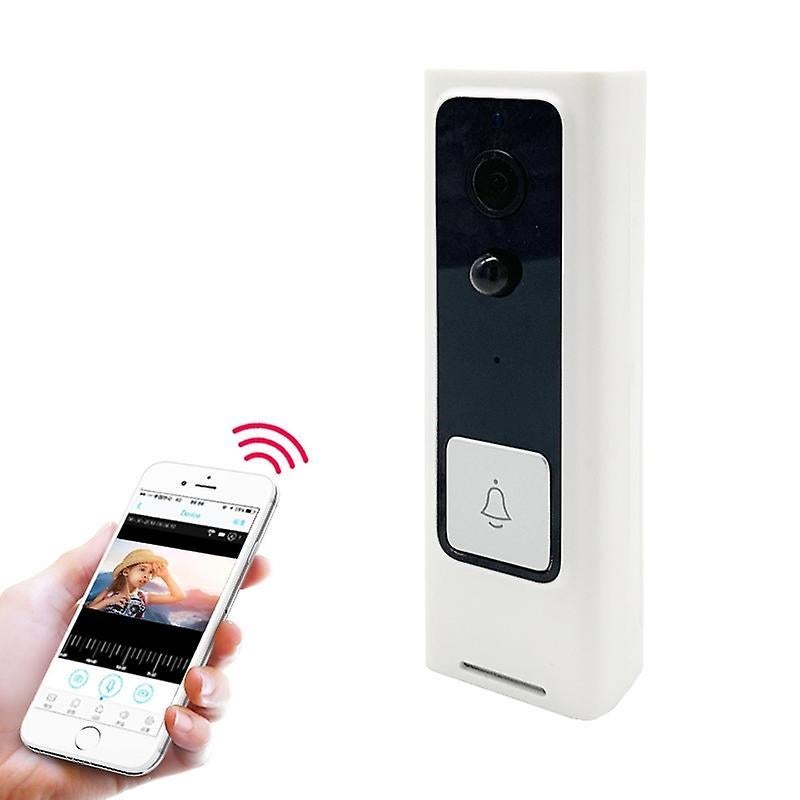

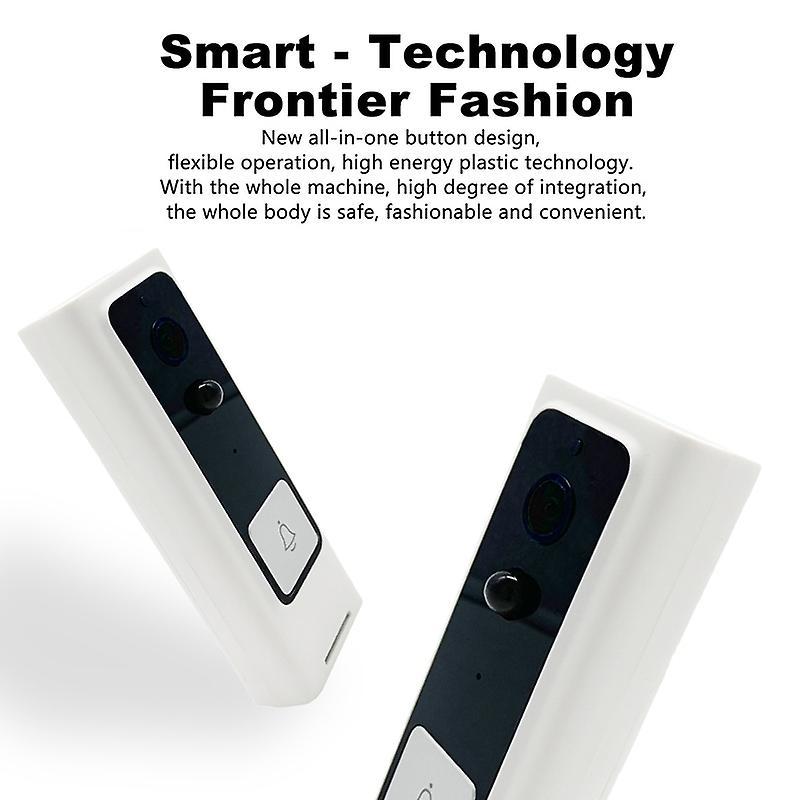

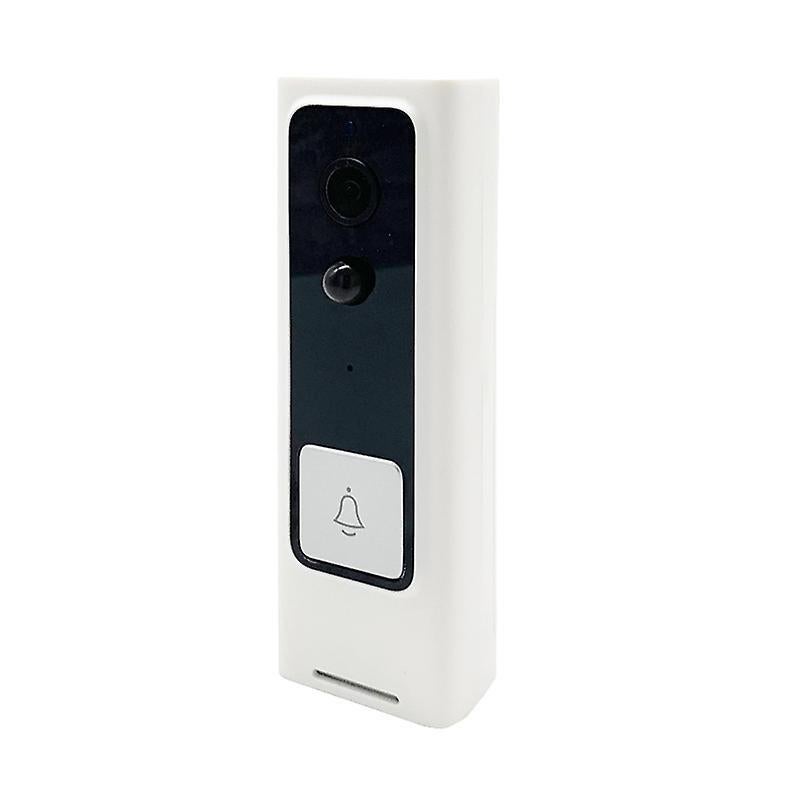

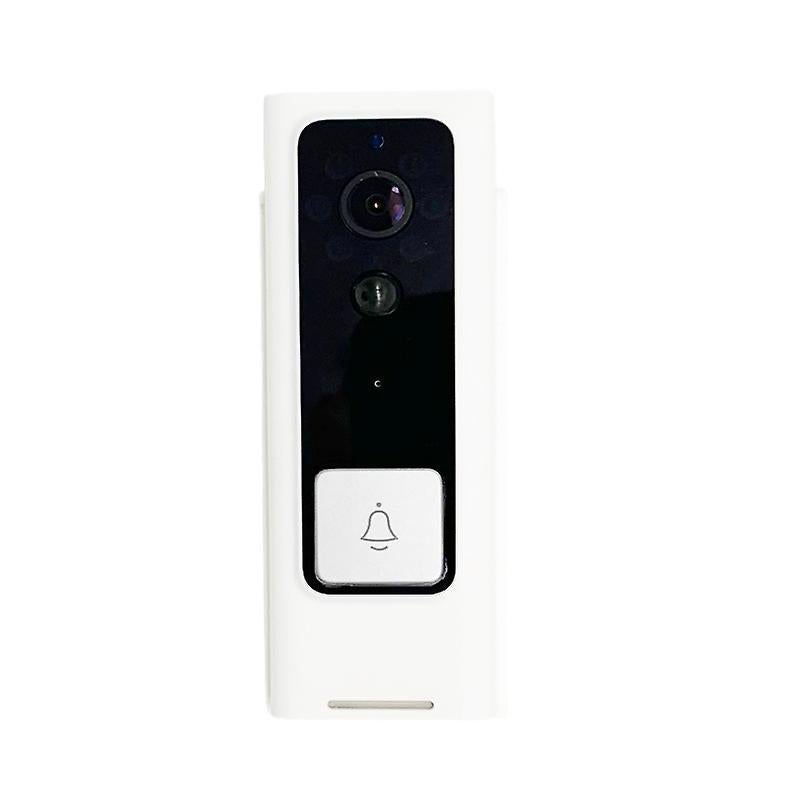

M200B WiFi Intelligent Square Button Video Doorbell, Support Infrared Motion Detection &
Adaptive Rate &
Two-way Intercom &
Remote PIR Wakeup(White)
Specification:
1. The main control chip: Huawei HiSili Hi3518EV200.
2. Lens: Full 3G1P super wide-angle lens.
3. Perspective: 100 degrees horizontal.
4. Video stream: 1280x72030fps, 640x36030fps.
5. CMOS performance: support automatic white balance, automatic gain control, automatic backlight compensation, digital wide dynamic.
6. System: Lite OS.
7. Standby time: About 5-10 months (10 wakes per day for PIR, 15S each time).
8. Day and night conversion: Dual filters automatically switch.
9. Infrared distance: 850nm infrared, effective distance 5m.
10. Network configuration mode: One button WIFI configuration + sound wave configuration.
11. Audio coding standards: AAC and G.726.
12. Frequency input output: -38dB microphone built-in 1 speaker.
13. Recording mode: Manual remote wake-up recording, PIR alarm recording.
14. WiFi: 2.4GHz.
15. Network protocol: TCPIP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P.
16. Passive Human Infrared Detection: Supported.
17. Adaptive Bit Rate: Supported.
18. Two-way intercom: Support full-duplex real-time calls.
19. Sleep time: 30s.
20. Remote Wakeup: Support.
21. PIR wake-up: support high-medium-low sensitivity three wake-ups.
22. Cloud Storage: Optional 7-day loop for permanent free cloud storage.
23. Mobile client: Ubell, iOS 10.0, Android 5.0 and above.
24. Operating temperature: -10-50 degrees Celsius.
25. Operating humidity: Less than or equal to 80% RH.
Adaptive Rate &
Two-way Intercom &
Remote PIR Wakeup(White)
Specification:
1. The main control chip: Huawei HiSili Hi3518EV200.
2. Lens: Full 3G1P super wide-angle lens.
3. Perspective: 100 degrees horizontal.
4. Video stream: 1280x72030fps, 640x36030fps.
5. CMOS performance: support automatic white balance, automatic gain control, automatic backlight compensation, digital wide dynamic.
6. System: Lite OS.
7. Standby time: About 5-10 months (10 wakes per day for PIR, 15S each time).
8. Day and night conversion: Dual filters automatically switch.
9. Infrared distance: 850nm infrared, effective distance 5m.
10. Network configuration mode: One button WIFI configuration + sound wave configuration.
11. Audio coding standards: AAC and G.726.
12. Frequency input output: -38dB microphone built-in 1 speaker.
13. Recording mode: Manual remote wake-up recording, PIR alarm recording.
14. WiFi: 2.4GHz.
15. Network protocol: TCPIP, HTTP, TCP, UDP, SMTP, DHCP, DNS, P2P.
16. Passive Human Infrared Detection: Supported.
17. Adaptive Bit Rate: Supported.
18. Two-way intercom: Support full-duplex real-time calls.
19. Sleep time: 30s.
20. Remote Wakeup: Support.
21. PIR wake-up: support high-medium-low sensitivity three wake-ups.
22. Cloud Storage: Optional 7-day loop for permanent free cloud storage.
23. Mobile client: Ubell, iOS 10.0, Android 5.0 and above.
24. Operating temperature: -10-50 degrees Celsius.
25. Operating humidity: Less than or equal to 80% RH.
