Product Description

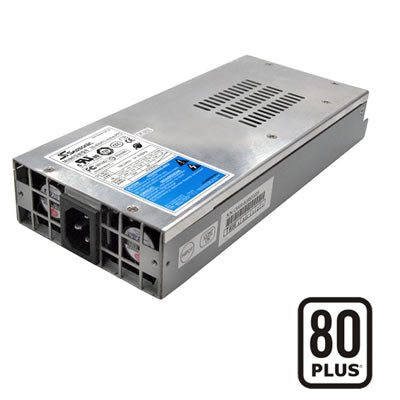

The SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U) is a reliable power supply unit designed for industrial applications, featuring Intel EPS12V compliance and high efficiency with up to 83% typical efficiency at full load. This compact PSU, measuring 235mm x 100mm x 40mm, boasts a smart and silent fan control system, ensuring low noise and minimal ripple for optimal performance. It includes essential safety features such as short circuit, over voltage, and over power protection, while also meeting EMC standards like CE and FCC. With a robust design and an MTBF of over 100,000 hours, this power supply is perfect for those seeking durability and efficiency in their systems

Features:
- Specification compliance: Intel EPS12V
- Forward converter circuit
- High efficiency and reliability for industrial level
- Easy swap connector design
- High reliability ball bearing fan
- Low ripple & noise
- Smart & Silent Fan Control (S2FC)
- Zero minimum load on 3.3V rail
- Short circuit protection on all outputs
- Over voltage protection
- Over power protection
- 100% hi-pot test
- 100% burn in, high temperature cycled on/off
- PFC harmonics compliance: IEC1000-3-2 /EN61000-3-2 standards

Dimension: L235 x W100 x H40mm (9.3 x 3.9 x 1.6 )

Fan type: 38 x 38mm

Electrical Specifications:
- Input frequency: 50 / 60 Hz
- Inrush current, cold start: 100A max.
- Efficiency, 220-240VAC, full load: 83% typical
- Efficiency, 100-120VAC, full load: 80% typical
- Dielectric withstand, input to frame/ ground: 1800VAC, 1sec.
- Dielectric withstand, input to output: 1800VAC, 1sec.
- Line regulation: +/-1% typical
- Load regulation: +/-5% typical
- Cross regulation: +/-5% typical
- Ripple / noise: 1%
- MTBF, full load: >100K hours (Excluding the DC fan)
- Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC, BSMI
EMC: CE, FCC, C-tick

Package contents:

1x SeaSonic 400W Active PFC F0 1U PSU (SS-400H1U)
